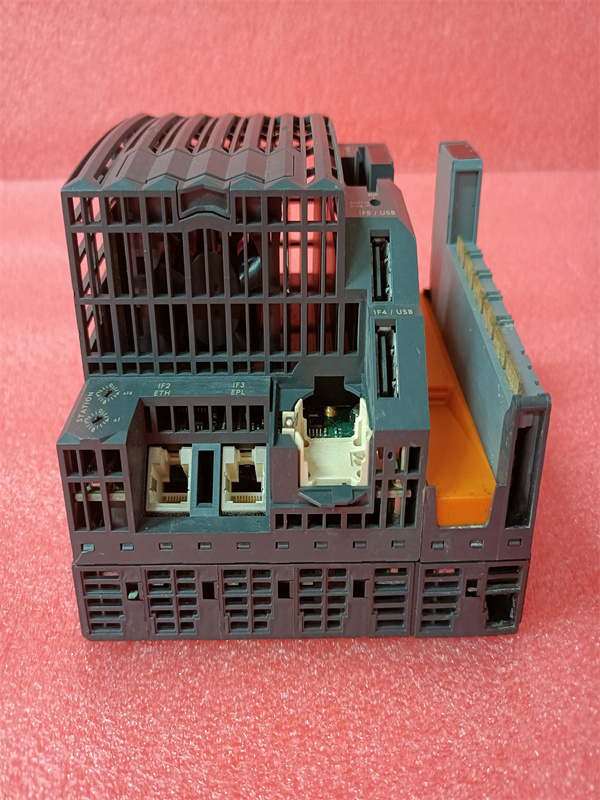

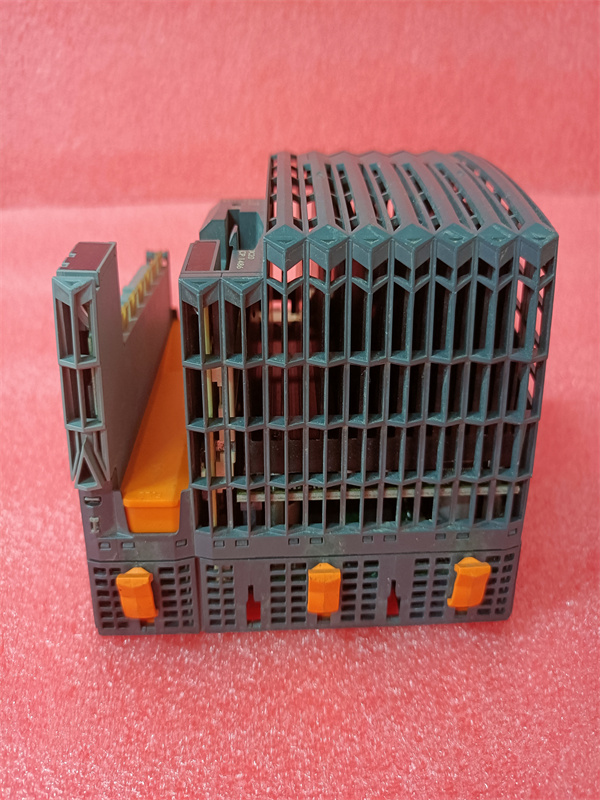

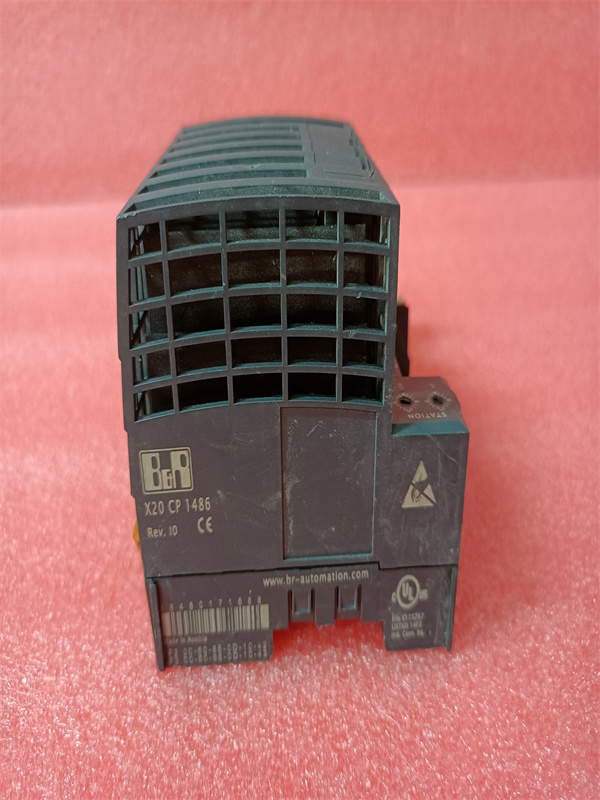

X20CP1486

Description

The parameters, specifications and functions of the X20CP1486 are listed below:

Parameters:

CPU: X20 CPU
Memory: 64MB DRAM, 1MB SRAM
Storage: Compact Flash
Interfaces: 1 slot for X20IF-module, 2 USB interfaces, 1 RS232 interface, 1 Ethernet interface 100 Base-T, 1 POWERLINK V1/V2

Specification:

Dimensions: 173mm x 173mm x 30mm (W x D x H)
Weight: Approx. 1.4kg
Display: A projected capacitive widescreen with a bezel-less design with an anti-glare glass surface and a high-resolution display that is also applied to the Automation Panel. It is an operation panel that combines a variety of functional designs, and its display range from 15.6 to 24 Full HD ensures that it meets a wide range of possible needs.

Functionality:

Modules with HART inputs and HART outputs, these new modules with 2 inputs and outputs and the real-time Ethernet POWERLINK send HART data directly from sensors and actuators directly to the controller. To analyze the data, the controller can forward the data via the process bus to a maintenance station with an FDT container, which could be a Bergauer Automation Studio, PACTware or FieldCare.
This type of communication makes it possible to configure HART devices, which can be communicated via the TCP/IP communication DTM from Bergerac, which scans the network and detects the entire hardware tree, including field devices.
