Description

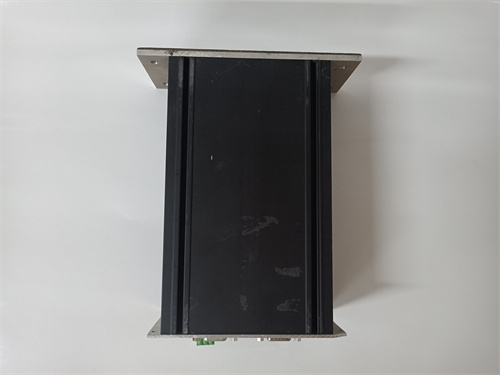

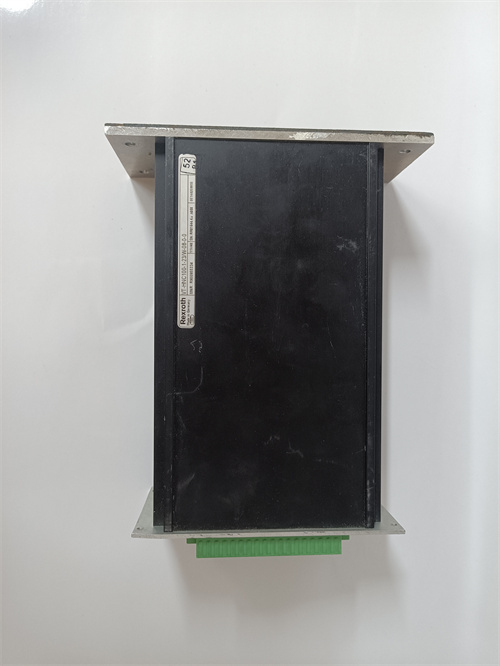

VT-HNC100-1-23/W-08-0-0 is a digital axis controller launched by Rexroth,Indramat or Bosch.The following is a detailed introduction to the product:

1.Basic Overview

VT-HNC100-1-23/W-08-0-0,as part of the VT-HNC100 series,is a programmable NC(numerical control)controller.It is designed to meet the specific requirements of hydraulic drive closed-loop control and has a variety of functions and features,making it an ideal choice for industrial automation and process control.

2.Main Features

Number of control axes:VT-HNC100-1-23/W-08-0-0 can accommodate up to four control axes to meet the needs of multi-axis control.

Hydraulic axis:It has 1 hydraulic axis and is suitable for occasions where hydraulic control is required.

Input and output:It is equipped with 8 digital inputs/outputs,which is convenient for data exchange and control with other devices or systems.

Component series:It has 23 component series,providing rich choices and configuration possibilities.

Bus connection:Support PROFIBUS DP bus connection to achieve reliable communication with other devices.

VT-HNC100-1-23/W-08-0-0

3.Functional command mode

VT-HNC100-1-23/W-08-0-0 supports two main functional command modes,which can be selected by software:

Real-time external reference signal input:Input analog or digital signals through the bus communication interface to achieve real-time data exchange and control with external devices.

Internal generation of simple motion curves:Programming through AtosPC software,and then the external machine control unit uses the on-off signal input to achieve the generation and control of internal motion curves.

4.Additional functions

Software settings:The controller is completely set by software,including compensation of major hydraulic system characteristics,closed-loop PID gain and maximum window error.

Electrical compensation:The electrical compensation function of the actuator seal friction improves the accuracy and stability of the control.

Power supply guarantee:The controller and the electromagnet power output stage are powered separately to ensure that the bus communication between the controller and the machine control unit remains active when the hydraulic axis stops in an emergency.

Pressure or force closed-loop control:Option S is provided,which combines pressure or force closed-loop control on the basis of the initial position control to meet more complex control needs.

Real-time oscilloscope function:It can dynamically analyze the performance of valves and axes,helping users to find and solve problems in time.

Fault diagnosis:It provides detailed diagnostic functions for axis status,faults and performance,as well as LED signal light diagnosis of controller operation status,which is convenient for users to troubleshoot and repair.

V.System requirements and configuration

PC program:The PC program”WIN-PED 5″is usually used for programming,setting and diagnosis.The program provides convenient dialog functions for setting machine data online or offline,NC editor with integrated syntax check and program compiler,etc.

System requirements:It usually requires the use of IBM PC or compatible system,Windows 2000 or Windows XP operating system,at least 256 MB of RAM(recommended)and 60 MB of available hard disk space.

VI.Application field

VT-HNC100-1-23/W-08-0-0 is widely used in various industrial fields that require precise control and monitoring,such as manufacturing,energy,chemical industry,etc.Especially in the occasions where hydraulic drive closed-loop control is required,such as machine tools,injection molding machines,die-casting machines and other equipment,VT-HNC100-1-23/W-08-0-0 can provide a stable and reliable control solution.

VT-HNC100-1-23/W-08-0-0
