VT-HNC100-1-23

Description

VT-HNC100-1-23 may refer to a digital axis controller in the VT-HNC100 series.The following is a detailed introduction to it:

1.Product Overview

The VT-HNC100-1-23 digital axis controller is designed for hydraulic drive closed-loop control and has the characteristics of high precision,high speed and high reliability.It belongs to the VT-HNC100 series,which is widely used in industrial automation fields such as rolling systems,packaging machinery,thermoforming machinery,linear doors,etc.

2.Main features and functions

Programmable control:

VT-HNC100-1-23 supports multi-axis linkage control,and complex motion control logic can be realized through programming.

High precision and high speed:

The controller has the characteristics of high precision and high speed,which can meet the application scenarios with high requirements for motion control accuracy and speed.

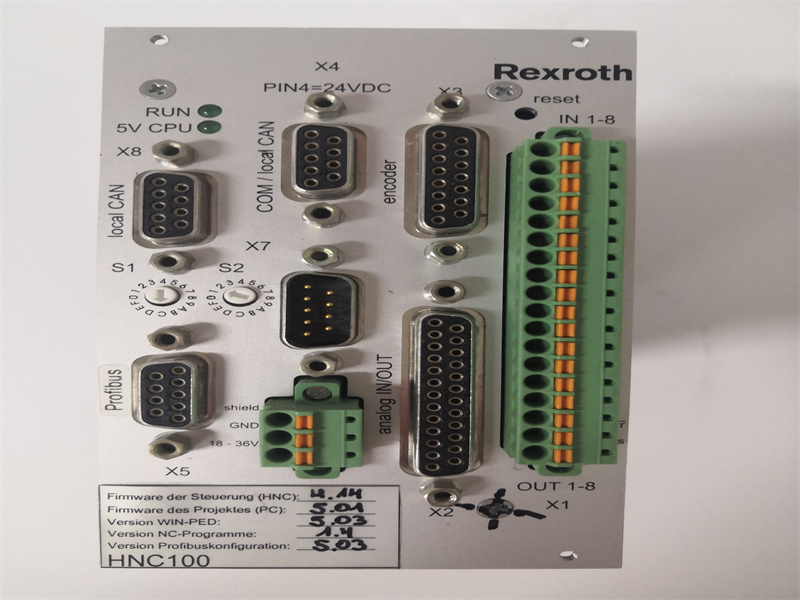

VT-HNC100-1-23

Multiple input and output interfaces:

Provides multiple digital input/output interfaces for easy connection and communication with other devices.

Wall-mounted housing:

The wall-mounted housing design saves space and is easy to install.

Real-time external reference signal input:

Supports real-time external reference signal input,analog or digital signals can be input through the bus communication interface.

Internally generate simple motion curves:

The controller can generate simple motion curves internally and set them through AtosPC software programming.

Additional functions:

The controller is fully software-set,including compensation of main hydraulic system characteristics,closed-loop PID gain and maximum window error.

With electrical compensation function for actuator seal friction.

The controller and the solenoid power output stage are powered separately to ensure that the hydraulic axis stops in an emergency state,while the bus communication between the controller and the machine control unit remains active.

III.Technical specifications(partial)

Number of axes:supports up to four control axes.

Hydraulic axis:1 hydraulic axis.

Input and output interface:8 digital input/output interfaces.

Operating voltage:usually 220V(may vary depending on the model).

Output frequency:may reach 50kHz(depending on the application requirements).

Certification:ISO 9001,CE mark,etc.

IV.Application Fields

VT-HNC100-1-23 digital axis controller is widely used in industrial automation and control systems,especially in manufacturing automation processes that require high precision and reliability.For example,it can be used to control hydraulically driven equipment to achieve precise position control,speed control,force control,etc.

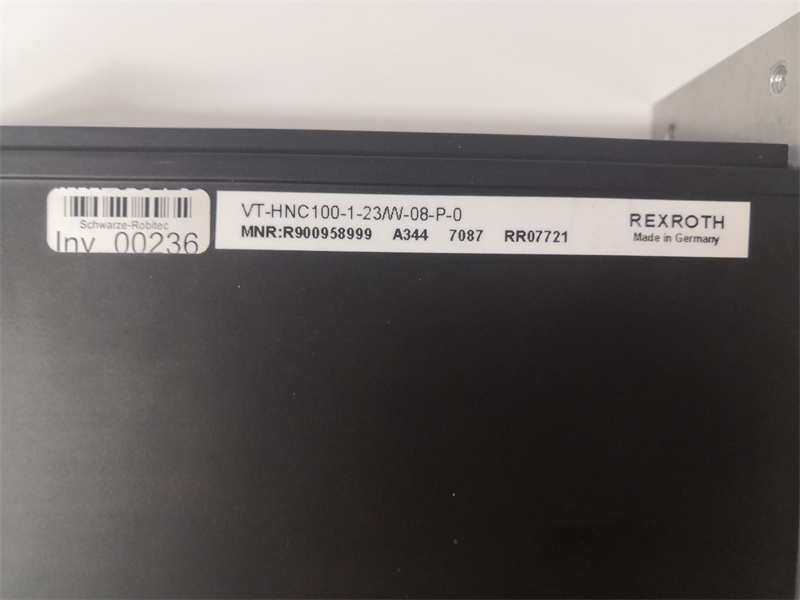

VT-HNC100-1-23
