Product Description:

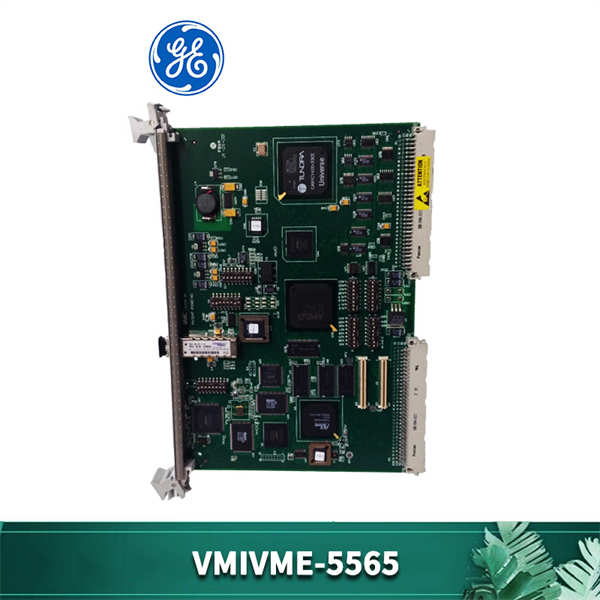

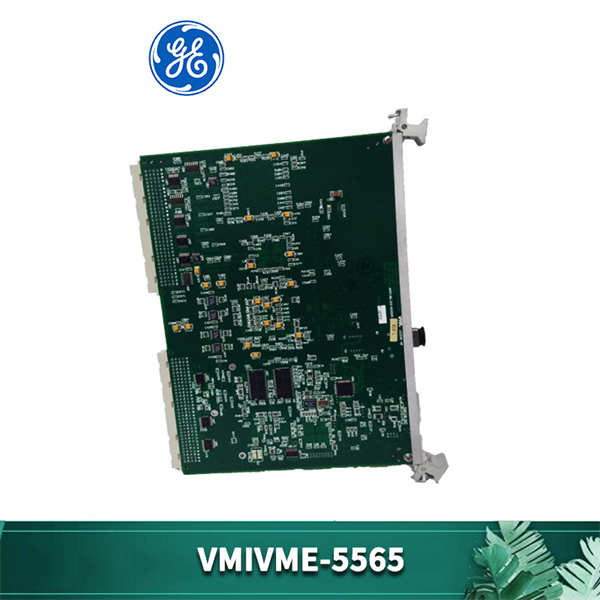

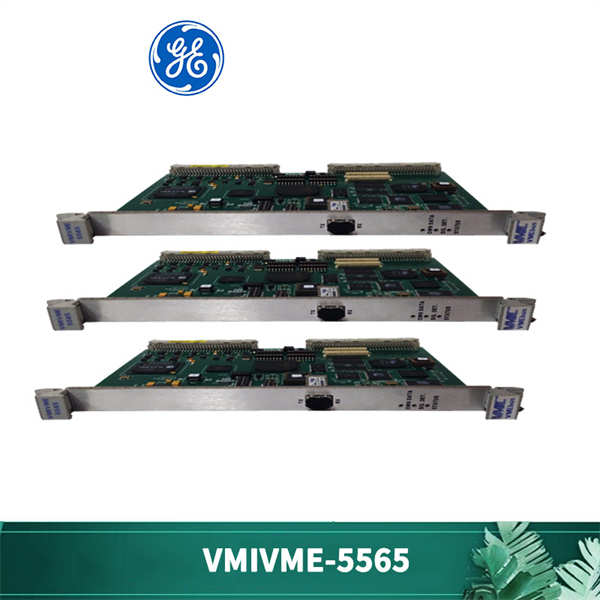

The VMIVME-5565 from GE is a high-performance sensor module that is designed to connect and interface with multiple sensors, providing accurate measurement capabilities. It converts analog signals from sensors into digital signals suitable for processing and analysis by control systems.

VMIVME-5565 GE Output Signal – Product Description, Parameters, Specifications, Series, Features, Functions, Applications, and Usage Domains

Product Parameters:

Processor: PowerPC 750GX, with a clock speed of 1.0 GHz

Memory: 512 MB DDR SDRAM and 1 GB NOR Flash

Interfaces: VME64x, PCI, PMC, and Ethernet

Operating System: Supports Windows, Linux, and VxWorks

Operating Temperature: Ranges from 0 to 55 ℃

Product Specifications:

Size: 6U x 160 mm

Power: +5 V, ±12 V, with a maximum power consumption of 15 W

Data Transmission Rate: Up to 320 MB/s on the VME64x interface

Maximum PMC Slots: Supports up to 2 PMC slots

Series:

The VMIVME-5565 belongs to the VMIVME series of sensor and communication modules from GE, offering a range of features and configurations for various industrial and scientific applications

Features:

Multi-Channel Capability: Supports multiple channels for connecting multiple sensors

Signal Conditioning: Offers various signal conditioning functions such as programmable gain, offset, and filtering

**High-Speed Data Acquisition:**Capable of acquiring data at high speeds, with a maximum sampling rate of 100 ks/s

Flexible Programming: Modules may support programming or configuration options to adapt to specific application requirements

Communication Interfaces: Supports various communication interfaces such as Ethernet, RS-232, RS-485, etc., for data transmission

VMIVME-5565 GE Output Signal – Product Description, Parameters, Specifications, Series, Features, Functions, Applications, and Usage Domains

Functions and Applications:

Sensor Interface: The module interfaces with various sensors, converting analog signals into digital signals for processing by control systems

Signal Processing: Performs signal processing tasks such as filtering, scaling, and conversion

Data Acquisition and Storage: Supports data acquisition, storage, and retrieval for analysis and monitoring

Control Applications: Finds applications in control systems where precise timing and synchronization are crucial

Usage Domains:

Industrial Automation: Used in industrial automation systems for monitoring and controlling equipment, processes, and production lines

Scientific Research: Supports experimental setups and research applications where accurate sensor measurements are essentia

Data Acquisition Systems: Integrated into data acquisition systems for real-time monitoring and analysis of physical parameters

Control and Monitoring: Used in control and monitoring systems for various industries such as manufacturing, energy, transportation, etc.
