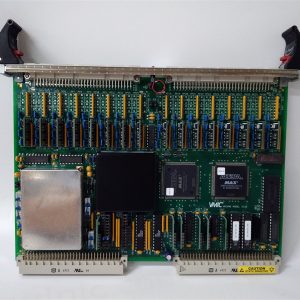

VMIC VMIVME-3122

Description

VMIC’s VMIVME-3122 is a high-performance 16-bit analog-to-digital converter board.Here is a detailed introduction to the product:

I.Product Overview

The VMIVME-3122 is a member of VMIC’s extensive VMEbus analog input/output product family.It features 16-bit digitizing resolution,program-controlled gain,selectable conversion rate,and automatic scanning of 64 differential or single-ended analog inputs.The board can be directly connected to VMIC’s signal conditioning board series to digitize the outputs of thermocouples,thermal resistors,and strain gauges.

II.Main Features

High Resolution:

The VMIVME-3122 has 16-bit digitizing resolution,providing excellent dynamic range and analog input channel density.

Multi-channel automatic scanning:

Supports automatic scanning of 64 differential or single-ended analog inputs,simplifying the data acquisition process.

Program-controlled gain:

The gain of each channel can be programmed individually or set to a fixed gain common to all channels through software.Channel gain can be selected as x1 or x10 through software.

VMIC VMIVME-3122

Selectable conversion rate:

Provides a variety of scan rate options,including 381Hz to 100kHz(high performance option)and 381Hz to 50kHz(standard performance option)to meet different application requirements.

Multiple operation modes:

Supports multiple operation modes such as automatic scanning,data burst and external synchronization,which improves the flexibility and adaptability of the system.

Dual-port data memory:

Equipped with a 16 to 1024-word dual-port data buffer,the digital values​​are stored in the dual-port data buffer and can be accessed from the VME bus at any time,which improves data transmission efficiency.

Onboard timer:

The timed data pulse train is controlled by an interval timer,which can provide a repetitive or single pulse train interval of up to 687 seconds,facilitating the realization of timed data acquisition.

Programmable bus interrupter:

The bus interrupter for mid-scan or end-scan indication simplifies the monitoring of data in the dual-port data buffer.

VMIC VMIVME-3122

III.Application fields

VMIVME-3122 is suitable for a variety of system applications,including factory automation,process control,data acquisition systems,training simulators and laboratory instruments.Its high performance and flexibility make it an ideal choice for data acquisition and processing in these fields.

4.Technical Specifications(Partial)

A/D Converter Range:±2.5V,±5V,±10V,0 to+5V,0 to+10V.

Data Space:Supports operation of Short I/O(A16),Standard(A24),or Extended(A32)data space.

Programmable Channel Block Size and Buffer Size:Channel blocks can be adjusted to 1,8,16,32,or 64 channels,and the data buffer size can be selected from 16 data words to 1024 data words in binary increments.

Synchronization Capability:Multiple boards can be synchronized together,enabling up to 16 boards to start each scan simultaneously.
