Description

VMIC VMIVME-3122-020 is a high-performance analog-to-digital converter(ADC)electronic component.The following is a detailed introduction to it:

1.Product Overview

VMIVME-3122-020 is a member of the VMIC VMEbus analog input/output product series,with 16-bit digital resolution,program-controlled gain,selectable conversion rate,and 64 differential or single-channel automatic scanning functions.It can convert continuous analog signals into discrete digital signals.The input quantity is usually DC current or voltage,and the output quantity is the logic level of binary digital(+5 volts and 0 volts).

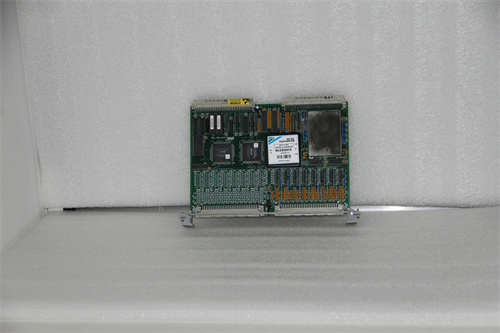

VMIC VMIVME-3122-020

2.Main Features

High resolution:16-bit digital resolution,suitable for applications requiring precise measurement.

Multi-channel input:Supports 16,32 or 64 differential or single-ended analog inputs,with excellent dynamic range and analog input channel density.

Optional conversion rate:Provides a variety of scan rate options,including selectable scan rates from 381Hz to 100kHz(high performance option)and selectable scan rates from 381Hz to 50kHz(standard performance option).

Programmable gain:The gain can be programmed to x1 or x10,which is convenient for users to adjust according to actual needs.

Wide voltage range:The A/D converter range includes±2.5V,±5V,±10V,0 to+5V and 0 to+10V,which can adapt to different voltage input requirements.

Dual-port data buffer:It has a 16 to 1024-word dual-port data buffer to facilitate data storage and reading.

Multiple operating modes:It supports multiple operating modes such as automatic scanning,data burst and external synchronization to meet the needs of different application scenarios.

III.Application fields

VMIC VMIVME-3122-020 is widely used in factory automation,process control,data acquisition systems,training simulators and laboratory instruments.It can convert production process variables(such as temperature,pressure,flow,force,etc.)or sound signals into analog electrical signals through sensors,and then convert them into a form suitable for digital processing(binary digital),and send them to computers,digital storage devices,data transmission devices for processing or storage,or display them in digital or graphical form.

4.Technical Specifications

Dimensions:233mm x 167mm x 64mm(may vary depending on product batch or customization requirements)

Weight:Approximately 2.5kg(specific weight may vary depending on product batch or configuration)

Operating temperature:generally supports a wider temperature range,but the specific value may vary depending on product batch or customization requirements

Interface type:VME64x
