Description

Vibro-meter VM600 MPC4 is a mechanical protection card produced by Vibro-meter(now Meggitt).It is the core component of the VM600 series mechanical protection system(MPS).The following is a detailed introduction to the product:

I.Product Overview

The Vibro-meter VM600 MPC4 mechanical protection card uses advanced digital signal processing technology(DSP)to monitor and measure the vibration,speed and other parameters of the machine in real time,providing high-precision vibration and condition monitoring for rotating machinery and key equipment.The card has multi-channel input and programmable functions,suitable for various industrial applications.

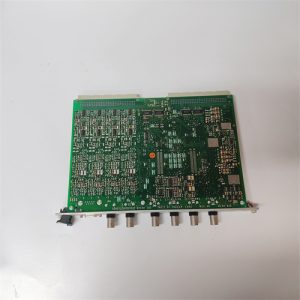

Vibro-meter VM600 MPC4

II.Main Features

Multi-channel input:

The VM600 MPC4 has 4 dynamic signal channels and 2 speed(speed)channels,all of which can be programmed separately.

The dynamic signal channel can accept signals representing acceleration,velocity and displacement(proximity).

High-precision measurement:

Advanced DSP technology is used for real-time measurement and monitoring to ensure the accuracy of the measurement results.

A wide range of physical parameters can be measured,including relative and absolute vibration,Smax,eccentricity,thrust position,absolute and differential housing expansion,displacement and dynamic pressure.

Programmable functions:

Programmable wideband and narrowband filters,the appropriate filter range can be selected as needed.

Simultaneous monitoring of amplitude and phase provides comprehensive vibration information.

Programmable alarm,danger and determination set points,triggering corresponding alarms or protection actions based on measurement results.

Live plug-in(hot plug):

The VM600 MPC4 supports live plug-in function,which can be replaced or maintained without interrupting system operation.

Multiple version options:

Three versions are available:”Standard”,”Independent Circuit”and”Safety”(SIL)to meet different application requirements.

The”Safety”version is certified by IEC 61508 and ISO 13849 and can be used in functional safety environments.

III.Technical specifications

Input channels:4 dynamic signal channels,2 speed(speed)channels.

Frequency range:The frequency range of the dynamic signal channel is 0.5Hz to 10kHz(or 0.1Hz to 10kHz,depending on the measurement parameter).

Measuring range:Depends on the specific application and sensor type,such as the vibration measurement range can be 0.1mm/s to 50mm/s.

Data sampling rate:256 times per second(or other sampling rates,depending on the configuration).

Operating temperature:-20°C to 60°C(or-40°C to+70°C,depending on the version and configuration).

Power supply voltage:Usually 24VDC(depending on the version and configuration).

Physical dimensions:Height is about 6U(262mm),width is about 20mm,and depth is about 187mm(specific dimensions may vary depending on the version).

Weight:about 1.5kg(or about 0.40kg,the specific weight may vary depending on the version).

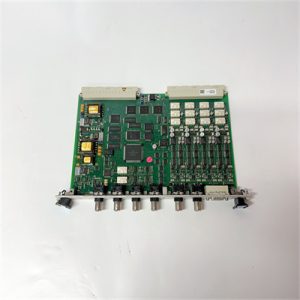

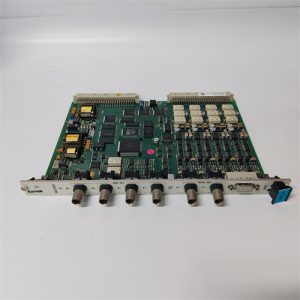

Vibro-meter VM600 MPC4

IV.Application fields

Vibro-meter VM600 MPC4 is widely used in the field of vibration monitoring and fault diagnosis of rotating machinery in industries such as power,petroleum,chemical,steel,cement,etc.It can be used to monitor the vibration of various rotating machinery,such as turbines,generators,compressors,pumps,etc.,to help users detect and deal with potential mechanical failures in a timely manner,and ensure the normal operation of the equipment and production safety.

V.Product Advantages

High-precision measurement:using advanced DSP technology and high-precision sensors to ensure the accuracy of the measurement results.

Multi-channel input and programmable functions:providing multiple input channels and programmable functions to meet various application requirements.

Real-time plug-in and easy maintenance:supporting real-time plug-in and pull-out functions,which is convenient for users to replace or maintain without interrupting system operation.

Multiple version options:providing multiple version options to meet different application environments and safety requirements.
