TVME200

Description

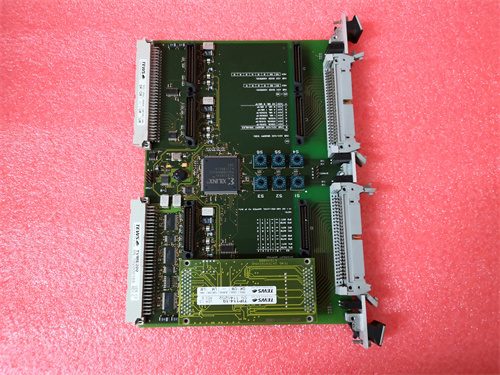

1.TVME200 Bus Carrier

Overview:

TVME200 is a 6U VMEbus carrier.

It can accommodate up to 4 single-size or 2 double-size industrial package(IP)modules.

Design features:

Complies with VMEbus specification ANSI/VITA 1-1994 and IndustryPack logical interface specification ANSI/VITA 4-1995.

Industrial package I/O and ID space are mapped to VME A16/D16 space,and IP memory space is mapped to VME A24 or A32 space.

Supports D08 and D16 access.

If mapped to VME A24 space,the size of the required memory space is configurable;in VME A32 space,each IP module has a fixed space of 8Mbyte.

TVME200

Technical information:

VMEbus slave interface:According to VMEbus specification ANSI/VITA 1-1994,6U circuit board.

Short I/O:VME A16,D08/16.

Address modifier:29,2D(size:1 kilobyte,256 bytes/IP).

Standard memory:VME A24,D08/16(address modifier:39,3A,3D,3E,size:programmable,from 32K bytes to 2M bytes per IP).

Extended memory:VME A32,D08/16(address modifier:09,0A,0D,0E,size:fixed,8Mbytes per IP).

Interrupt:VME IRQ1-7.

Industrial package slot:four single size or two double size with front panel I/O 8MHz interface,no DMA.

Application:

Build modular,flexible and cost-effective I/O solutions for applications such as process control,medical systems,telecommunications and traffic control.

TVME200

2.TVME200 power module

Design:

It adopts modular design and can accommodate 4 single size or 2 double size industrial package(IP)modules.

Features:

High-performance data acquisition:With high-speed data acquisition function,it can acquire and process various types of signals in real time.

Multi-channel input:It provides multiple input channels and can collect multiple signals at the same time,which is suitable for complex data acquisition tasks.

Signal processing capability:Equipped with powerful signal processing capabilities,it can process and analyze the collected data in real time.

High precision and stability:Ensure the accuracy and reliability of data acquisition and signal processing.

Support multiple interfaces:It can communicate and exchange data with other devices and systems.

Programmability:It can be configured and customized according to user needs.

Industrial-grade design:It has high anti-interference ability and durability,suitable for harsh industrial environments.

Application:

Designed for industrial automation,process control,medical systems,telecommunications and traffic control applications.
