Description

TRICONEX 9566-810 is a digital input(DI)terminal panel manufactured by TRICONEX(now part of Schneider Electric).It is a key component of the Triconex TriStation Safety Instrumented System(SIS).The following is a detailed introduction to TRICONEX 9566-810:

I.Product Overview

The TRICONEX 9566-810 digital input terminal board is designed for safety-critical applications such as process control,power generation,and nuclear power plants.It provides stable and reliable digital input signal acquisition functions,supports access to various sensors,and ensures that the control system can accurately receive and process signals from field devices.

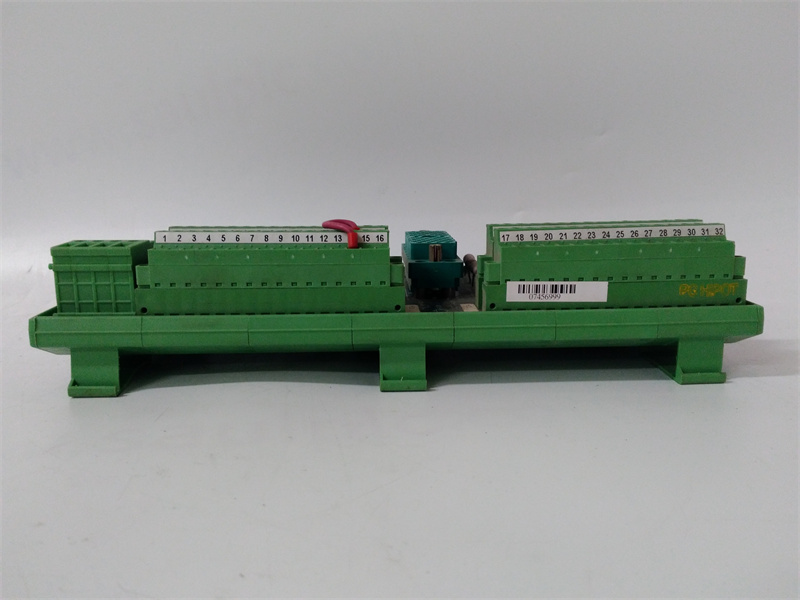

TRICONEX 9566-810

II.Main Features

32 digital input channels:

Can receive digital signals from various sensors or field devices.

These channels support standard digital signal levels such as 24VDC or 125VDC(depending on product specifications and configuration).

Signal conditioning and isolation:

The terminal board integrates signal conditioning and isolation circuits to ensure accurate transmission and reliable processing of input signals.

This helps reduce signal interference and noise,and improves system stability and reliability.

Redundant configuration:

Supports redundant configuration,which can improve system fault tolerance and reliability through dual power supplies and processors.

In a redundant configuration,even if one power supply or processor fails,the system can continue to operate and maintain the ability to monitor and process input signals.

Easy to install and maintain:

The terminal block is designed to be easily installed on the DIN rail of the control cabinet or panel,which is convenient for users to install and remove.

The modular design makes maintenance and replacement simpler and more efficient.

Wide operating temperature range:

It can operate stably in the operating temperature range of-40°C to 70°C,and adapt to various harsh industrial environments.

Multiple communication protocols:

Supports communication protocols such as Modbus,Ethernet,OPC,etc.,which is convenient for integration and data exchange with other control systems and equipment.

TRICONEX 9566-810

III.Application fields

TRICONEX 9566-810 digital input terminal board is widely used in various industrial automation and process control systems,including but not limited to:

Manufacturing:used for equipment status monitoring,fault alarm,etc.on the production line.

Petrochemical industry:used in refineries,chemical plants and other places to monitor various process parameters and equipment status.

Power energy:used for power system control and monitoring in power plants,substations and other places,such as generator speed,voltage and cooling water flow.

Nuclear power plant:used for nuclear power plants to monitor safety-related parameters,such as reactor coolant pressure,radiation level and emergency stop signal.

IV.Technical specifications(example)

(Note:The following technical specifications are examples,and the specific specifications may vary due to product batches and customized requirements)

Input voltage:24VDC or 125VDC(depending on product specifications and configuration)

Output voltage:24VDC(used to provide power for some field equipment)

Operating temperature range:-40°C to 70°C
