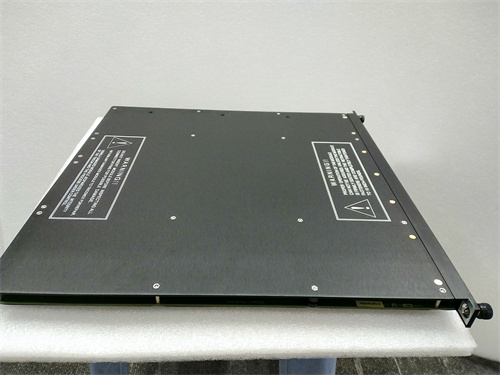

TRICONEX 3721

Description

TRICONEX 3721 is a device widely used in industrial automation and process control.The following is a detailed introduction to it:

1.Product Overview

TRICONEX 3721,commonly known as TRICONEX 3721 communication module or digital input card,is a high-performance product produced by Triconex(now a brand of Congen Group).It is designed to connect the main chassis and other equipment to achieve data communication and control functions,and is widely used in industrial automation fields such as petroleum,chemical,electric power,and water treatment.

TRICONEX 3721

2.Main functions and uses

Support Ethernet supply main chassis:TRICONEX 3721 communication module is able to support Ethernet-connected main chassis,accommodating main processors,memory backup batteries,communication modules,and I/O modules.

Extension chassis connection:The module supports the connection of additional I/O modules no more than 100 feet(about 30 meters)from the main chassis,and even supports operations up to 1000 feet(about 300 meters)in restricted applications.In addition,RXM chassis are also supported for connecting I/O modules within 7.5 miles(about 12 kilometers)from the main chassis.

Digital input function:As a digital input card,TRICONEX 3721 provides 16 digital input channels that can be used to monitor various types of digital signals,such as contact closure,voltage signal and current signal.These channels can be configured individually,allowing users to set parameters such as input type,filter,debounce time,etc.

Adaptability to harsh environments:This product is designed for harsh environments and can withstand extreme temperatures,shock and vibration to ensure stable operation under harsh industrial conditions.

III.Technical specifications and parameters

Here are some of the main technical specifications and parameters(may vary depending on the specific model or configuration):

Digital input channels:16,configurable individually.

Input type:contact closure,voltage signal(0-30VDC)or current signal(0-24mA).

Input filter:programmable from 0 to 1 second.

Input debounce time:programmable from 0 to 500 milliseconds.

Input voltage isolation:1500Vrms between the field side and the logic side.

Input current isolation:3000Vrms between the field side and the logic side.

Hot Swap:Supports hot swap function and can be replaced without interrupting the operation of the Triconex system.

Operating temperature:-40°C to+70°C.

TRICONEX 3721

Shock and vibration:Tested to meet IEC 60068-2 standards.

Power consumption:Maximum 4 watts.

Compatibility:Compatible with Triconex Trident safety instrumented system.

Compliance:Meets ANSI/ISA-82.02.01-2004,IEC 61508(SIL 3)certification.

IV.Application areas

TRICONEX 3721 communication modules or digital input cards are widely used in the following fields:

Industrial automation:In automated production lines,factories and industrial processes,it is used to achieve data communication and coordination between devices.

Process control:In industries such as chemicals,oil and gas,it is used to communicate with process control systems to monitor and control key production parameters.

Power systems:Used to monitor and control power equipment,switchgear and communication with the power grid.

Safety systems:May be integrated with industrial safety systems to ensure system reliability and safety.
