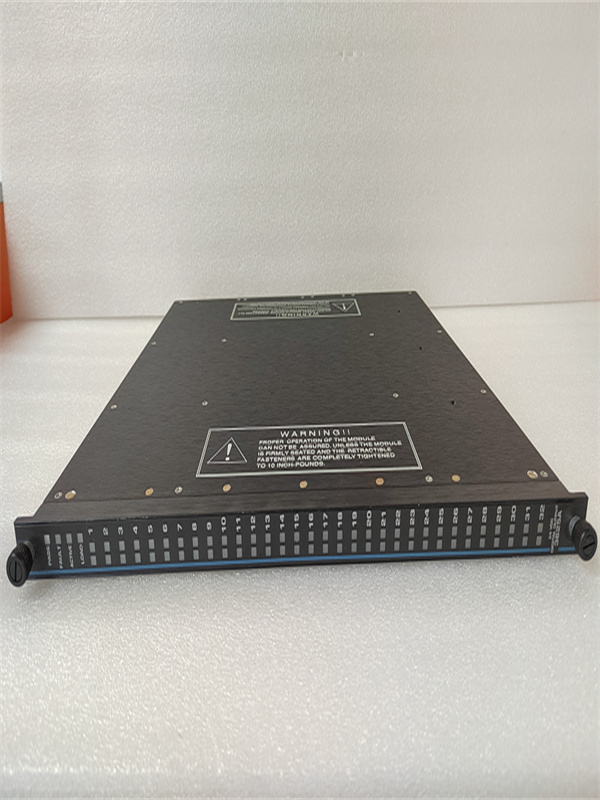

Triconex 3625A

Description

Triconex 3625A is a high-performance PLC(Programmable Logic Controller)module widely used in industrial automation systems.The following is a detailed introduction to Triconex 3625A:

I.Main functions and applications

Thermocouple input module:

As a thermocouple input(TC)module,Triconex 3625A has three independent input channels.

Each input channel can receive a variable voltage signal,perform thermocouple linearization and cold junction compensation,and convert the result to Celsius or Fahrenheit.

The converted result is sent to the main processor in the form of a 16-bit signed integer,with each count representing 0.125 degrees.

Pulse control and counting function:

Triconex 3625A also has a pulse control function,which can generate pulse signals according to preset parameters and logic and send them to actuators or other control devices.

At the same time,the module can count the input pulse signals,accurately record and accumulate the number of input pulses for real-time monitoring and control.

Triconex 3625A

Programmability and flexibility:

Each thermocouple input module is programmable to support one thermocouple type selected from J,K,T and E(for diagnostic failure channels).

Users can set and adjust parameters according to specific application requirements,so that the module can adapt to different pulse control requirements and support flexible configuration options.

2.Technical features

High accuracy and stability:

Triconex 3625A has been carefully designed and tested with high accuracy and stability.

It can provide accurate pulse control and counting functions under different working conditions to meet precision control and metering requirements.

Fault detection and alarm:

The module has a complete fault detection function and can monitor the channel status in real time.

Once a fault occurs,the fault indicator will be activated and trigger the chassis alarm signal.But please note that the module fault indicator only reports channel faults,not overall module faults.

Hot standby capability:

Triconex 3625A supports hot standby function,allowing online replacement of faulty modules to ensure continuous operation of the system.

Input and output interface:

The module has input and output interfaces for connecting external signals and control devices.

Receive external pulse signals or thermocouple signals through the input interface;control the actuator or send control signals to other devices through the output interface.

3.Application fields

Triconex 3625A is widely used in the following fields:

Industrial process control:such as oil and gas,chemical industry,electric power and other fields,to realize the monitoring and control of various process parameters and equipment status.

Safety system:used to monitor and control key equipment and processes to ensure the safety of personnel and equipment.

Power system:monitor and control the status of power equipment,such as generators,transformers,switchgear,etc.,and provide corresponding protection and fault detection functions.

Process safety management:monitor and control key process parameters,and detect abnormal conditions in real time to prevent accidents.

Pressure vessel and pipeline control:real-time monitoring of parameters such as pressure,temperature and flow,and take corresponding control measures.

Triconex 3625A

The company mainly imports PLC modules,programmable controllers,servo control systems and DCS spare parts,such as:ABB,AB(Rockwell),GE(General Electric),Bentley,Honeywell Er),Emerson.),Motorola,Invensys,Westinghouse,etc.The company has established close cooperative relations with many world-renowned PLC and DCS product maintenance service providers.We can purchase goods directly from abroad and provide equipment and spare parts from different countries and manufacturers.

We supply goods directly from abroad,without intermediaries,reducing the cost of use.

There is really no medium that can make a difference!!

Shenzhen Changxin Automation-sufficient supply,large spot quantity,guaranteed quality,you can buy with confidence and use with peace of mind~!

If you have any defects or needs for imported PLC and DCS spare parts,please contact our team,we will help you find reliable and high-quality products super quickly,while shortening delivery time to ensure that your equipment can operate normally in the right environment.Just in time.

Professionally provide:PLC programmable control system,distributed control system(DCS),safety instrument system(SIS),ESD system,vibration monitoring system,turbo compressor unit control system(CCS)and other PLC modules,various industrial control systems,system modules,CPU,IO module,DO module,AI module,DI module,network communication module,Ethernet module,motion controller,analog input module,analog output module,digital input module,digital output module,module redundancy,power module,relay output unit,relay input unit,processor unit.

Products are widely used in:electricity,petroleum,mine hoisting,ports,heating,gas,water supply,sewage treatment,metallurgy,papermaking,textile,chemical industry,water conservancy and other modern industrial fields!
