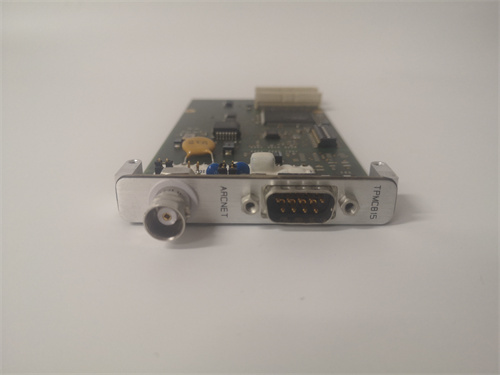

TPMC815-11

Description

TPMC815-11 is a control motherboard card module produced by TEWS.The following is a detailed introduction to the module:

1.Product Overview

TPMC815-11 is an embedded I/O solution based on multiple industrial standards such as IndustryPack,PMC,XMC,CompactPCI,PCI,PCI Express,PCI Express Mini Card,VMEbus,PC104+,AMC,MicroTCA and FMC.The module is a standard single-width 32-bit PMC module with a complete ARCNET interface and uses the controller COM20020.

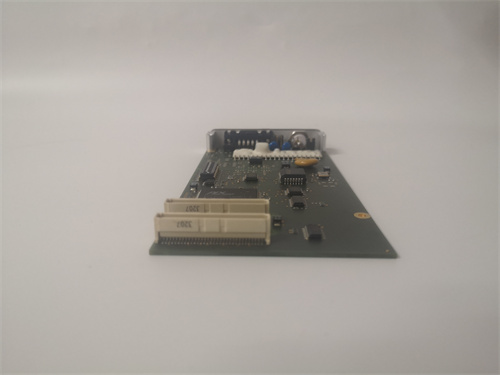

TPMC815-11

2.Main Features

High reliability:

TPMC815-11 is designed to operate stably in harsh industrial environments and maintain accurate signal input and output performance.

Programmable function:

Users can implement different control logic and algorithms through programming to meet different application requirements.

Multiple protection functions:

The module has multiple protection functions such as over-current protection,over-voltage protection,over-temperature protection,etc.to protect the module itself and the connected devices from power-related problems.

Central Processing Unit:

Usually includes one or more central processing units(CPU)to control and coordinate the operation of the system or equipment.

Wide Application:

Designed for a variety of applications,including but not limited to industrial automation,process control and data acquisition.

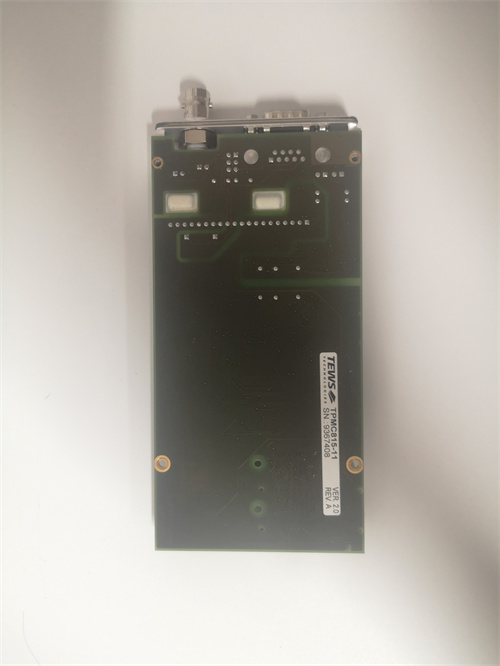

TPMC815-11

III.Technical Specifications

Board Type:

Standard single-width 32-bit PMC module.

Controller:

Using controller COM20020,built-in transceiver and dual-port RAM,supporting multiple network topologies such as star,tree,bus,etc.

Interface:

With a complete ARCNET interface,it complies with the IEEE p1386.1 standard and provides a PCI 2.1 compatible interface.

Dimensions:

The board size is 149mm x 74mm.

Other Features:

The TPMC815-11x model provides a traditional isolated hybrid interface with a maximum speed of 2.5 Mbps,suitable for long-distance transmission.

The module is equipped with an isolated RS485 differential drive interface and a built-in DC/DC converter.

4.Application Fields

TPMC815-11 control motherboard card module is suitable for various application scenarios that require control and coordination of system or equipment operations,especially in the fields of industrial automation,process control and data acquisition.
