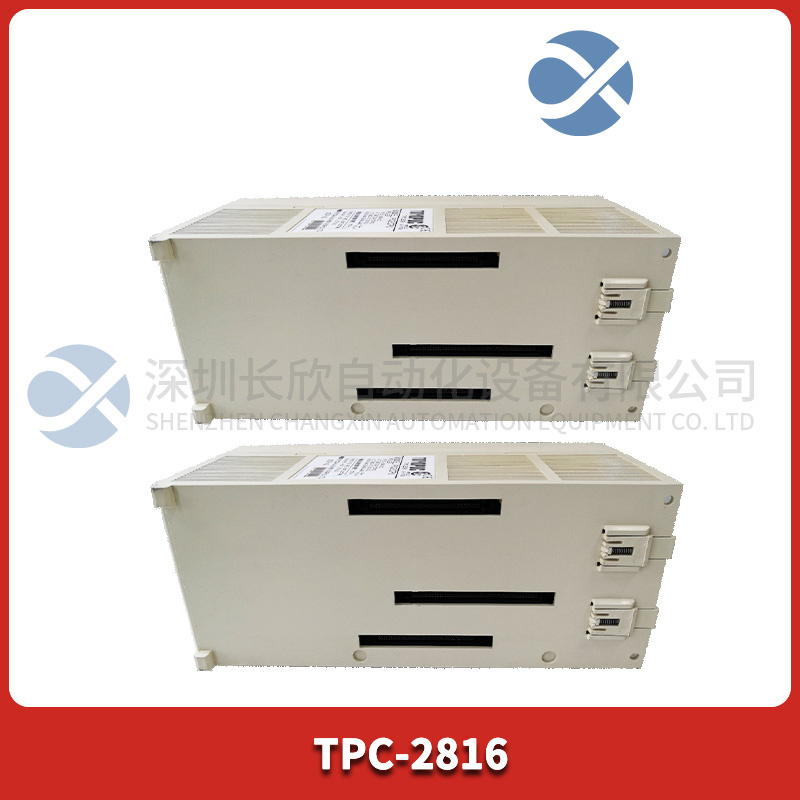

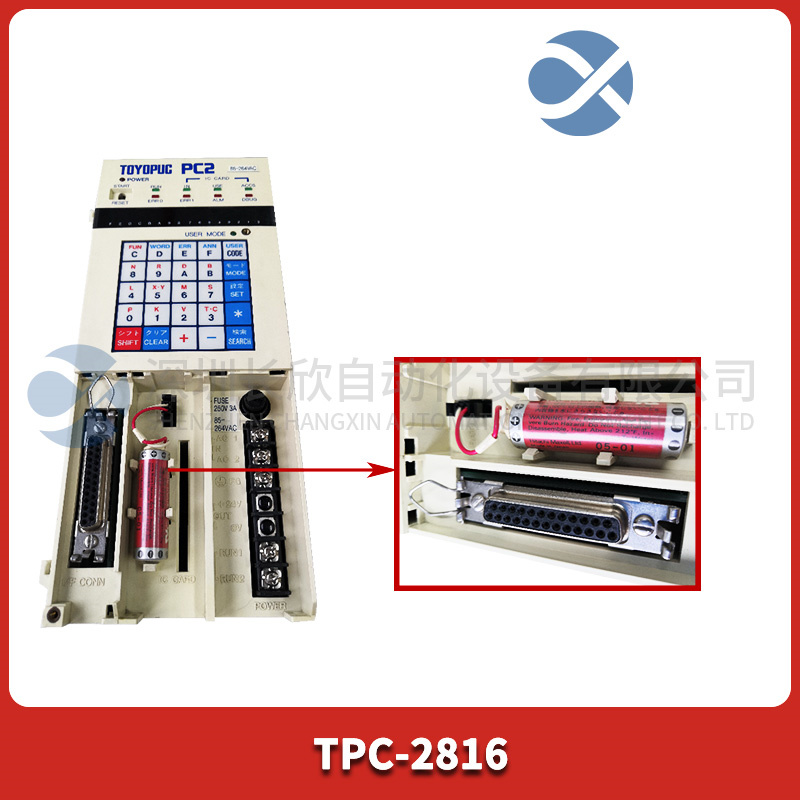

TPC-2816 TOYODA

Description

TPC-2816 TOYODA’s product description, product parameters, product specifications and application areas are as follows:

Product description: Servo drives are divided into azimuth, speed and current loops from the outside to the inside in accordance with their control objectives, and the corresponding servo drives can operate in the form of azimuth control, speed control and torque control.
Product parameters: product net length 1230mm, product net height 230mm, product net width 79mm, product net weight 2.3kg.
Product Specifications: Model TPC-2816, Brand TOYODA.
Application areas: unmanned, large-scale production and processing equipment.

Product Description:
TPC-2816 TOYODA is a drive designed for high precision servo control. It utilizes advanced digital signal processing technology to enable high-precision position, speed and torque control. At the same time, this drive is also highly reliable and stable, suitable for a variety of applications that require high-precision motion control.

Product Parameters:
Model: TPC-2816
Input voltage range: DC 24-48V
Output current range: 0-2A
Control mode: position control, speed control, torque control
Encoder input: support absolute encoder and incremental encoder
Communication interface: Support RS485, CAN, EtherCAT and other communication protocols.
Protection grade: IP20
Working environment temperature: -10-50°C
Storage ambient temperature: -20-70
Dimensions: 123×79×230mm (L×W×H)
Weight: 2.3kg

Product Specification:
Dimensions: 123×79×230mm (L×W×H).
Weight: 2.3kg.
Input voltage range: DC 24-48V.
Output current range: 0-2A.
Control mode: position control, speed control, torque control.
Encoder input: support absolute encoder and incremental encoder.
Communication interface: Support RS485, CAN, EtherCAT and other communication protocols.
Protection grade: IP20.
Working environment temperature: -10-50℃.
Storage ambient temperature: -20-70℃.

Application Fields:
TPC-2816 TOYODA is widely used in a variety of fields that require high-precision servo control, such as robotics, automated production lines, packaging machinery, CNC machine tools and so on. It can meet the needs of a variety of complex applications, realize high-precision position, speed and torque control, and improve production efficiency and product quality.

TPC-2816
