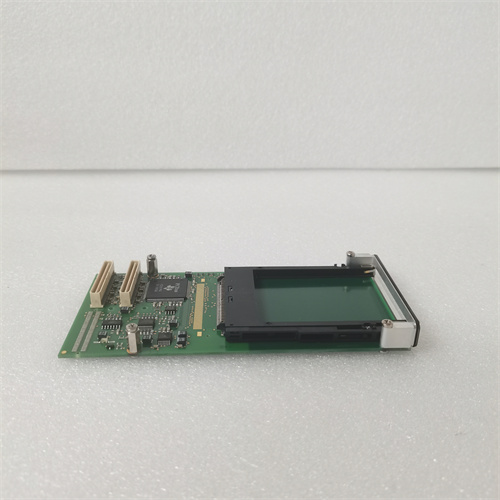

TEWS TPMC871-10

Description

TEWS TPMC871-10 is a high-performance input/output(I/O)module designed for use in rugged and harsh environments.The following is a detailed introduction to the module:

1.Design features

Based on the Industry Pack(IP)mezzanine standard:This module follows the Industry Pack mezzanine standard,enabling it to be easily integrated into VMEbus and CompactPCI single-board computer systems.

Analog and digital I/O channels:Equipped with four analog input channels and four analog output channels,which can be configured as voltage or current input/output.At the same time,eight digital input channels and eight digital output channels are also provided to meet the processing needs of various signals.

Rugged:Designed to operate in a temperature range of-40°C to+85°C and withstand shock and vibration specified by MIL-STD-810F,ensuring stability and reliability in harsh environments.

TEWS TPMC871-10

2.Technical Specifications

Analog Input:

Number of Channels:4

Configurable as:voltage or current input

Resolution:16 bits

Input range:±10V,±5V,±2.5V,0-10V,0-5V,0-2.5V or 4-20mA

Analog Output:

Number of Channels:4

Configurable as:voltage or current output

Resolution:16 bits

Output range:±10V,±5V,±2.5V,0-10V,0-5V,0-2.5V or 4-20mA

Digital Input:

Number of Channels:8

Compatible Voltage:5V or 24V

Features:Optical isolation,configurable input type(sink or source)

Digital Output:

Number of Channels:8

Compatible Voltage:5V or 24V

Features:Open collector,optical isolation,configurable output type(sink or source)

FPGA:Xilinx Spartan-3E,with 250,000 gates and 18,816 logic cells,provides flexibility and customization for different applications.

Timer:Programmable timer with 32-bit counter and programmable prescaler,which can be used to trigger events or generate periodic interrupts.

VMEbus interface:2eSST or 2eVME,supports 32-bit or 64-bit data transmission,clock frequency can be selected 40MHz or 80MHz.

CompactPCI interface:supports 32-bit or 64-bit data transmission,clock frequency can be selected 33MHz or 66MHz.

Power consumption:maximum 7.5W

TEWS TPMC871-10

III.Application areas

Industrial automation:used to monitor and control production lines,equipment or factory automation systems.

Data acquisition:collect data from various sensors,instruments or devices.

Control system:used in various control systems such as motion control,process control,etc.

Test and measurement:connect test equipment and measurement equipment for precise testing and measurement.

Embedded computing:used in embedded computing systems to support data processing and control functions.

Communication system:used for connection and control in communication equipment or systems.

Medical devices:Connect and control medical devices to ensure the accuracy and safety of medical procedures.
