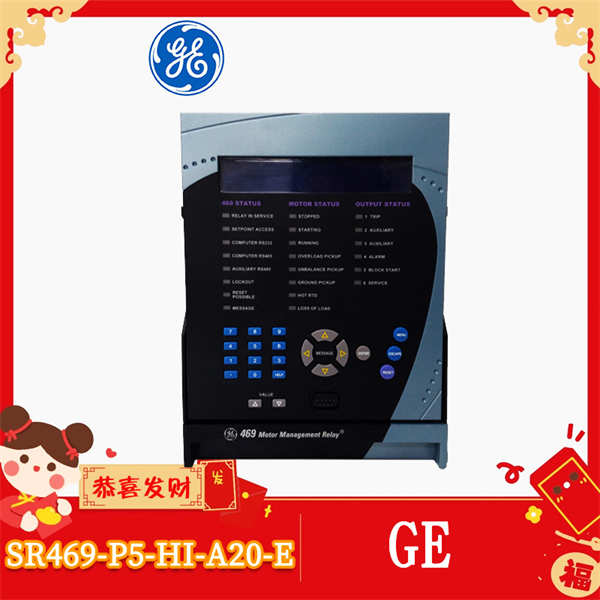

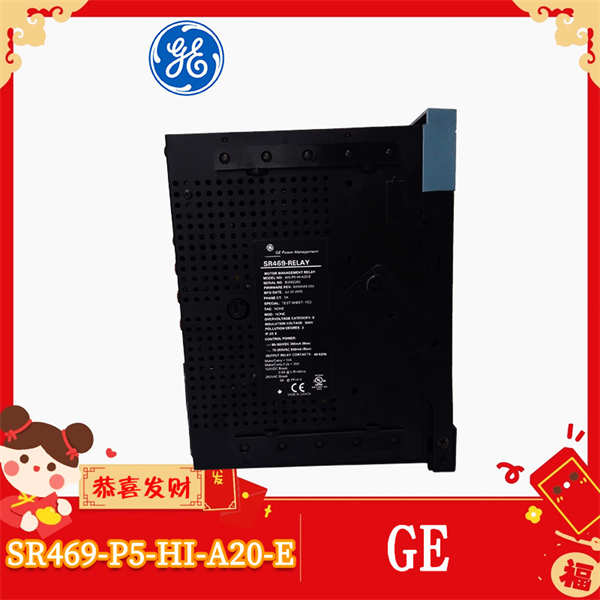

SR469-P5-HI-A20-E GE Motor Management Relay

Description

SR469-P5-HI-A20-E GE Motor Management Relay

Product Description:

The SR469-P5-HI-A20-E is a motor management relay from General Electric (GE) specifically designed for high-performance applications. This relay offers advanced protection features, including overload, short-circuit, and phase-loss protection, to ensure the safety and reliability of motors and electrical systems.

SR469-P5-HI-A20-E GE Motor Management Relay

Product Parameters and Specifications:

Model Number: SR469-P5-HI-A20-E

Input Voltage Range: 12-48VDC

Output Voltage Range: 5VDC

Output Current: Maximum of 10A

Efficiency: Greater than 90%

Dimensions: 170mm x 105mm x 32mm

Weight: Approximately 120g

Operating Temperature: -20°C to +50°C

Storage Temperature: -40°C to +70°C

Environmental Humidity: 5% to 95% relative humidity (non-condensing)

CPU: 32-bit RISC processor

SR469-P5-HI-A20-E GE Motor Management Relay

Serie

The SR469-P5-HI-A20-E belongs to the SR 469 family of motor management relays from GE, which offers a range of relays for different applications and requirements

Features:

Protection Functions: Features robust protection capabilities, including overload, short-circuit, and phase-loss protection, to safeguard motors and electrical systems from damage

Advanced Technology: Employs high-quality materials and advanced manufacturing techniques for high sensitivity and fast response times

Ease of Installation and Use: Compact design for convenient installation and simple configuration

Enhanced Front Panel: Features a well-designed front panel with an RS-232 program port interface, programmable up to 9600 baud rate, and a sealed extraction handle to prevent unauthorized access

Performance Monitoring: Monitors motor operating conditions, including current, voltage, and temperature, for accurate fault detection and proactive maintenance

Functions:

Protection: Safeguards motors and electrical systems from electrical faults, overloads, and other potential issues

Monitoring and Control: Provides real-time monitoring of motor parameters, allowing for precise control and adjustment of motor operations

Communication: Supports communication with other devices and systems for remote monitoring, control, and fault diagnosis

Applications and Uses:

The SR469-P5-HI-A20-E motor management relay finds widespread applications in various industries, including industrial automation, power generation, transportation, and construction. It is suitable for use with various types of motors and electrical systems, providing reliable protection and efficient control
