Description

Schneider 140CPU65150 is a processor module manufactured by Schneider Electric.The following is a detailed introduction to it:

1.Basic properties

Brand:Schneider

Model:140CPU65150

Origin:China

Series:Modicon Quantum Automation Platform/Unity Series

2.Technical specifications

Clock pulse frequency:166 MHz

Program capacity:12(some say it can be expanded to 7168 Kb,requiring a PCMCIA card)

Data capacity:213(or file storage can be expanded to 8 MB,requiring a PCMCIA card)

Internal RAM:768 Kb

Operating voltage:may be 24V(input voltage),3V(some say it is the processor operating voltage)

Output frequency:4Hz(some say it is the processor output frequency)

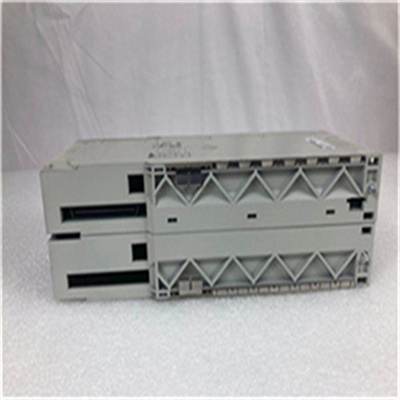

Schneider 140CPU65150

Processing speed:5μs

Output current:10A

Output power:50W

Frequency range:10~50Hz

Rated forward average current:20A

Operating temperature:20℃(may vary depending on the application environment)

Number of pins:300

Backplane information:

Number of brackets:2(local backplane)

Number of distributed I/O stations:63 stations(1 backplane)

Number of remote I/O stations:multiple options,such as 3 1 station(S908 remote I/O backplane),etc.

Number of slots:multiple options or configurations are possible

I/O configuration:

Discrete I/O:unlimited(up to 26 slots),31744 local inputs/outputs,and a corresponding number of remote configurations

Analog I/O:unlimited(up to 26 slots),1984 local inputs/outputs,and a corresponding number of remote configurations

Special application I/O:precise time stamp counter,high-speed interrupt input,serial port,etc.

Communication services:Ethernet router,etc.

Number of optional modules:multiple options,such as Ethernet,Modbus,Modbus Plus,Profibus DP,etc.

Integrated connection types:including Modbus Plus,Ethernet TCP/IP,Modbus,USB,etc.

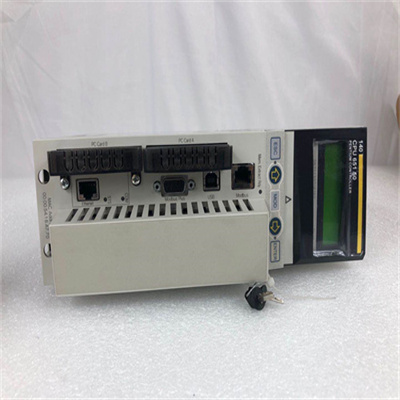

Schneider 140CPU65150

III.Functional features

Self-diagnosis and monitoring:With self-diagnosis and monitoring functions,it can ensure the health of the system.

Hot-swap support:allows online replacement of faulty modules,and online addition and subtraction of I/O modules without system restart.

Environmental adaptability:EMC protection capability reaches level III and CE certification is obtained.All electronic components are suitable for G3 severely polluted environments.

Panel indicator light:Provides status prompt function.

IV.Application and programming

Application:Mainly used to control and monitor various devices and systems.

Programming platform:Unity Pro software can be used for programming,debugging and runtime operation.Supports multiple IEC programming languages(FBD,LD,SFC,ST,IL),suitable for various application requirements.

V.Product certification and standards

Product certification:CE,CSAGOSTULMisc(marine),etc.

Compliance with standards:HazLoc,RoHS regulations,REACH regulations,etc.
