Description

SCHNEIDER ELECTRIC XBTGK2330 is a touch screen product produced by Schneider Electric.The following is a detailed introduction to the product:

1.Product Overview

XBTGK2330 is a touch screen for electrical remote communication control launched by Schneider Electric.It has rich functions and powerful performance and is widely used in industrial automation and control systems.

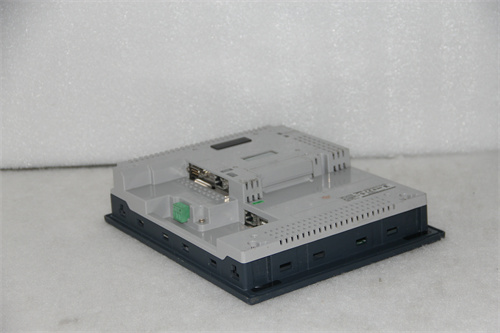

SCHNEIDER ELECTRIC XBTGK2330

2.Product Features

Display characteristics:

The display size is 5.7 inches.

The resolution reaches 320×240 pixels,QVGA level.

Backlit color TFT LCD,supports 65536 color display.

Touch sensing:

Equipped with touch screen function,supports users to interact with the interface through touch operation.

Communication and interface:

Supports multiple communication protocols and interfaces,including RJ45 connector(for Ethernet TCP/IP),serial link(RS232C/RS422/RS485),etc.

Compatible with communication standards such as Siemens MPI and Modicon M340.

Processor and memory:

Equipped with RISC processor with a frequency of 133MHz.

Equipped with 512Kb SRAM and 16MB flash EPROM to meet data storage needs.

Power supply and power consumption:

The rated power supply voltage is 24V DC,and the power supply voltage range is 19.2~28.8V.

The power consumption is low and suitable for long-term operation.

Physical characteristics:

The product size is moderate,easy to install and integrate.

The protection level is IP20(rear panel)and IP65(front panel,when screwed),with certain dust and water resistance.

Other features:

Supports the predetermined communication rate in the standard specification,and can manually set all standard rates or rate adaptation through the dip switch.

Equipped with 6 two-color LED status indicators to indicate power failure and other states.

Provides 4000V lightning protection,1.5A overcurrent and 600W surge protection for the electrical interface to ensure stable operation of the equipment.

SCHNEIDER ELECTRIC XBTGK2330

3.Application fields

XBTGK2330 touch screen products are widely used in industrial automation,process control,machine control and other fields.As a human-machine interaction interface,they realize the interactive operation between users and equipment.

4.Product status and alternative products

Product status:

XBTGK2330 products have been delisted,the discontinuation date is September 30,2022,and the service will be discontinued on December 31,2027.

Alternative products:

For users who need to replace XBTGK2330,Schneider Electric provides alternative products,such as HMIGK2310,etc.Users can choose suitable alternative products according to their specific needs.
