Description

SCHNEIDER BMXAMO0802 is an analog output module launched by Schneider.The following is a detailed introduction to the product:

1.Product Overview

Model:BMXAMO0802

Brand:Schneider

Series:Modicon X80 Series

2.Functional Features

Analog output:The module has 8 analog output channels,which can be used for electrical connections in harsh environments and supports outputs in multiple current ranges.

High precision:The BMXAMO0802 module has a 16-bit resolution and can provide high-precision analog output.

Multi-range selection:Supports outputs in two current ranges of 0…20mA and 4…20mA to meet different application requirements.

Non-isolated design:The module uses a non-isolated design between channels,which simplifies the circuit structure and reduces costs.

Fast conversion:The internal conversion time is less than or equal to 4ms,which can quickly respond to changes in control signals.

Reliable and stable:The use of high-quality materials and advanced production processes ensures the reliability and stability of the module.

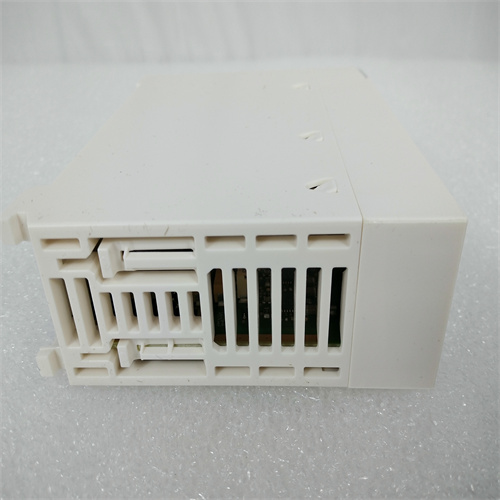

SCHNEIDER BMXAMO0802

3.Application Field

SCHNEIDER BMXAMO0802 module is widely used in industrial automation,process control,environmental monitoring and other fields.It can be used with various sensors and actuators to achieve precise analog output control.

SCHNEIDER BMXAMO0802

4.Technical Parameters

Power supply:Powered by the internal power supply of the rack.

Working environment temperature:

Operation:-25°C to 70°C(Note:”-2570°C”in the original information is obviously wrong and has been corrected according to common sense and industry standards)

Storage:-40°C to 85°C(Similarly,”-4085°C”in the original information has been corrected)

Working altitude:0~2000m(configurable predefined).

Power consumption:

24V DC typical:3.6W

24V DC maximum:3.9W

3.3V DC typical:0.35W

3.3V DC maximum:0.48W

Measurement error:

25~70°C:≤0.45%of full scale

25°C:0.1%of full scale

Temperature drift:45ppm/°C(applicable to 0…20mA and 4…20mA ranges).

Channel-to-channel crosstalk attenuation:≥80dB.

Common mode rejection ratio:≥80dB.

Isolation voltage:1400V DC(between channel and ground and between channel and bus).
