Description

Schneider 170LNT71000 is a DeviceNet communication template produced by Schneider Electric in France.The following is a detailed introduction to the product:

1.Product Overview

The 170LNT71000 communication template is specifically used for Modicon TSX Momentum systems.It allows programmable controllers or other DeviceNet master devices to communicate directly with field devices connected to the DeviceNet network through I/O base terminals.By installing the DeviceNet communication template on the I/O base,users can create a functional I/O module to access and control field devices.

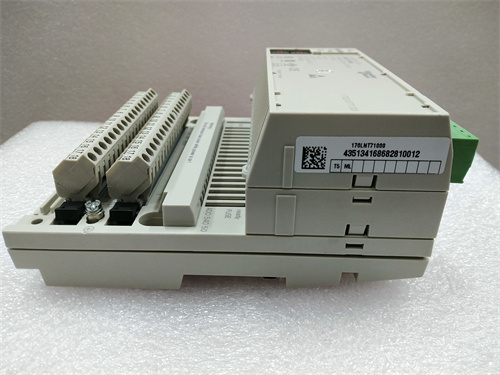

Schneider 170LNT71000

2.Main functions

DeviceNet communication:As a DeviceNet communication adapter,170LNT71000 supports industrial network communication standards based on the CAN(Controller Area Network)protocol,and can efficiently link sensors,actuators and other low-level devices with controllers or control centers in the field of automation control.

Status Indicator:The communication template is equipped with a series of status indicators to display the working status of the communication template,network status,and possible errors or warnings in real time,which is convenient for users to troubleshoot and maintain.

Network node address setting:The DeviceNet communication adapter needs a network node address to be identified in the network.By setting the network node address,it can be ensured that each device on the DeviceNet network can correctly identify and exchange data with other devices.

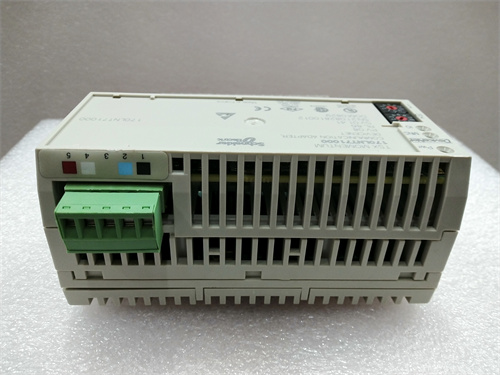

Schneider 170LNT71000

III.Application Field

Due to its efficient and reliable communication capabilities,the 170LNT71000 communication template is widely used in various fields of industrial automation control,including but not limited to manufacturing(such as automobile manufacturing,mechanical processing,electronic equipment production,etc.),energy industry(such as automation control systems in oil,natural gas,electricity and other industries),transportation(such as signal control and dispatching systems in railway,highway,aviation and other transportation fields)and public facilities(such as water treatment,garbage disposal,urban lighting and other public facilities automation management systems).

IV.Use and Maintenance

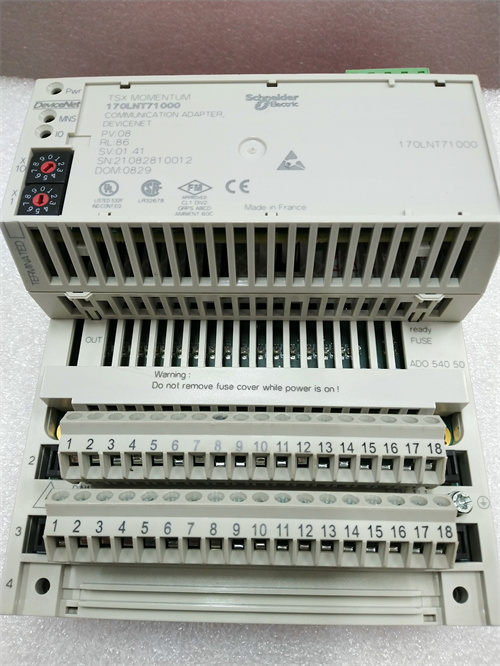

Installation:The 170LNT71000 communication template should be installed on any TSX Momentum I/O base to form a complete I/O module that can communicate with the DeviceNet network.

Configuration:During the connection between the DeviceNet communication adapter and the DeviceNet network,the physical connection between the adapter and the field device needs to be correctly configured,including the cable connection,network connection,and network parameter settings.

Maintenance:Users should regularly check the status indicator of the communication template,as well as the network connection and node address settings to ensure the normal operation of the device.
