Description

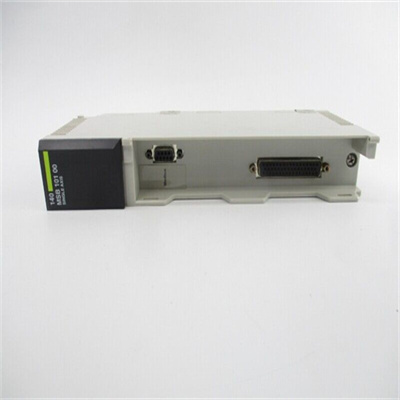

SCHNEIDER 140MSB10100 PLC DCS .1
Schneider 140MSB10100:
Product Parameters:
- Model: 140MSB10100
- Type: Single Axis Motion Module
- Series: Modicon Quantum
- Axis: 1 real axis, 1 remote axis
- Encoder: Differential encoder 5V
- Motion Control Capabilities: Linear, rotational, or continuous axis automatic control, master/slave speed and position synchronization
- Positioning Accuracy: ±0.5 arc/min
- Speed Range: 0.01 to 10000 mm/s
- Acceleration/Deceleration: 0 to 100000 mm/s²
- Maximum Pulse Frequency: 2 MHz
- Supply Voltage: 24V DC
- Power Consumption: 1000 mA
- Communication Interface: RS232D
- Dimensions: 220 x 100 x 35 mm
- Weight: 1.2 kg
- Protection Rating: IP20
- Installation Method: DIN rail mounting
Product Specifications:
- The 140MSB10100 module is designed for the Modicon Quantum automation platform, offering high precision and flexibility in motion control .
- It is capable of controlling both servo and stepper motors with high precision .
- The module supports various motion modes including point-to-point, linear interpolation, circular interpolation, and helical interpolation .
- It also features electronic cam, synchronous motion, and electronic gearing .
Features:
- High precision and speed in motion control .
- Multiple motion modes for complex control requirements .
- Support for Modbus communication protocol .
- Easy to install and use .
- Suitable for harsh industrial environments .
Application Fields:
- Industrial Automation: Control of machinery motion, such as robotic arms, conveyors, and packaging lines .
- Machine Tools: Control of motion axes in CNC machines .
- Packaging Machinery: Precise control of motion in packaging processes .
- Printing Machinery: Control of movement in printing presses and related equipment .
- Textile Machinery: Control of machinery motion in textile production processes .
Sources:
- Information is compiled from various sources including product datasheets and supplier descriptions
