Description

Schneider 140DDO84300 is a DC discrete output module produced by Schneider.The following is a detailed introduction to the module:

1.Product Overview

The 140DDO84300 module is part of Schneider’s Modicon Quantum automation platform and is mainly used for DC discrete output in industrial automation control systems.The module has 16 discrete output points,which can output a DC voltage of 10 to 60V and is divided into 2 groups for isolation.The maximum load current that each group can withstand is 2A.

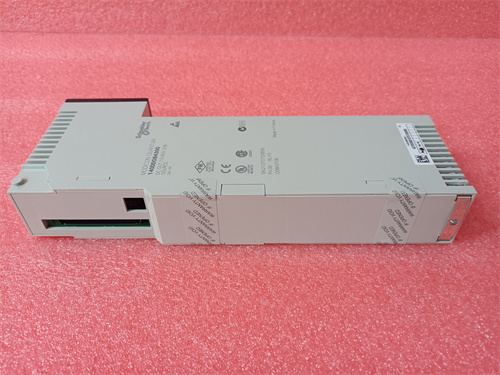

Schneider 140DDO84300

2.Product Features

High performance:The 140DDO84300 module has high-speed and reliable discrete output capabilities and is suitable for various industrial automation control occasions.

Isolation design:The 16 discrete output points of the module are divided into 2 groups for isolation,which improves the safety and stability of the system.

Wide voltage range:The output voltage range is between 10 and 60V,which can meet the control requirements of different devices.

LED indicator:The module is equipped with an LED indicator to display the output status and external fault information,which is convenient for users to troubleshoot and monitor the status.

Easy to install and maintain:The 140DDO84300 module is designed with standard size,which is easy to install into the cabinet of the automation system and provides a convenient maintenance and debugging interface.

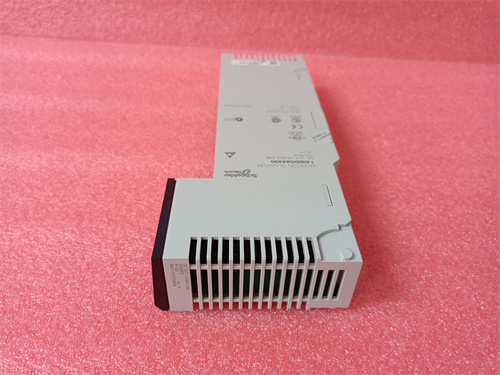

Schneider 140DDO84300

3.Technical Specifications

The following are the main technical specifications of the 140DDO84300 module:

Model:140DDO84300

Number of outputs:16 points

Output voltage:10 to 60V DC

Output current:2A per group,surge current≤7.5A(50s response time)

Channel group:2 groups of isolation

Output logic:negative logic(well)

Address requirement:1 output word

Power consumption:1W+(1V x total module load current)

Working environment temperature:0 to 60°C

Storage environment temperature:-40 to 85°C

Relative humidity:95%(non-condensing)

Altitude:≤5000m

Product certification:C-Tick,FM,GOST RMRS,CSA C22.2 No 142,UL 508,etc.

4.Application scenarios

The 140DDO84300 module is suitable for various industrial automation control systems that require DC discrete output,such as manufacturing,energy,water treatment,building automation and other fields.It can be used to control various DC devices,such as relays,solenoid valves,indicator lights,etc.,to achieve automatic control and monitoring functions.
