Description

140DDM39000 is a discrete input and output module produced by Schneider.The following is a detailed introduction to the module:

1.Basic information

Brand:Schneider

Model:140DDM39000

2.Technical specifications and parameters

Number of inputs/outputs:

Number of inputs:16 points,divided into 2 groups,8 points each.

Number of outputs:8 points,divided into 2 groups,4 points each.

Input voltage:

Rated voltage:24VDC.

Input voltage limit:less than or equal to 1V within 10s and one cycle;the voltage for 1.3ms is 30V and 56V.

Voltage state 0 guarantee:-3~5V.

Voltage state 1 guarantee:15~30V.

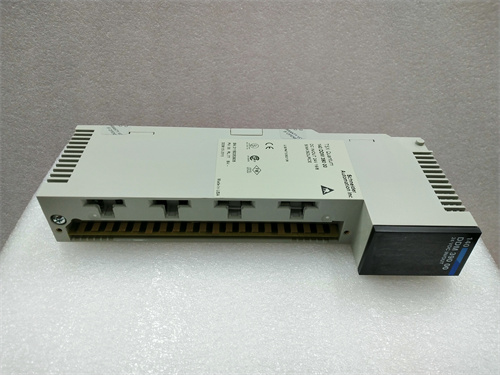

Schneider 140DDM39000

Output voltage:

Rated voltage:24V.

Output voltage limit:56V DC within 1.3ms;typical value is 19.2~30V DC.

Input impedance:2500 ohms.

Load capacitance:50µF or less.

Maximum load current:

Per module:4A or less.

Per group:2A or less.

Per point:0.5A or less.

Voltage drop:0.4V(at 0.5A).

Absolute maximum output:5A(within 500µs per point).

Leakage current:0.4mA(30V DC).

Output reaction time:

From 1 state to 0 state:1ms or less.

From 0 state to 1 state:1ms or less.

Power consumption:1.75W+(0.36x input points powered)+(1.1 total output load current).

Required bus current:330mA.

Dimensions:170mm x 105mm x 32mm.

Weight:

About 120g(0.3kg in some descriptions,which may be the weight of different versions or accessories).

Operating temperature:-20°C to+50°C.

Storage temperature:-40°C to+70°C.

Ambient humidity:5%to 95%relative humidity(no condensation).

CPU:32-bit RISC processor.

Schneider 140DDM39000

III.Application scenarios and uses

The 140DDM39000 discrete input and output module is commonly used in industrial automation,process control and other scenarios.It can receive and send discrete signals,such as switch status,sensor signals,etc.,and convert these signals into digital signals for processing and transmission.The module has the characteristics of high performance,high reliability and ease of use,and can meet the needs of various industrial automation systems.
