Description

SCHNEIDER 140DAO84000 is a discrete output module produced by Schneider.The following is a detailed introduction to the module:

1.Product Overview

The SCHNEIDER 140DAO84000 module is part of the Schneider Automation product series and is specially designed for discrete output in industrial automation control systems.The module has the characteristics of high performance,high reliability and easy integration,and is widely used in various industrial fields.

2.Main Features

Output quantity and type:

The module provides 16 discrete output channels,each of which can be controlled independently.

The output type is isolated to ensure the stability and safety of the output signal.

Output voltage and power consumption:

The output voltage range is 20~253V AC,which is suitable for a variety of industrial field voltage requirements.

The power consumption is low,1.85+(1.1Vx total module load current),which helps to reduce system energy consumption.

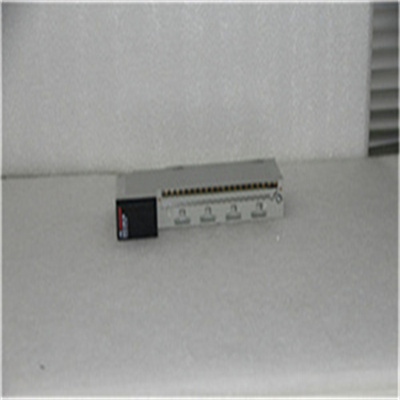

SCHNEIDER 140DAO84000

Load Capacity:

The absolute maximum output is 400Vrms(1 cycle AC)or 300Vrms(for 10s AC),ensuring normal operation under harsh conditions.

The maximum load current varies according to the output voltage,24115V per output is 4Arms,200230V per output is 3Arms,and four continuous outputs are 4Arms.

Reaction Time and Protection:

The reaction time is very fast,less than or equal to 0.5ms(from state 1 to state 0 or from state 0 to state 1).

The internal RC filter is used for protection to effectively prevent abnormal conditions such as overcurrent and overvoltage from damaging the module.

Indicator and Signal:

16 green LED indicators are provided to display the output status(1 to 32).

There is also 1 red LED indicator for detecting external faults(F).

1 green LED indicator is used to show that bus communication is in progress(activity).

Other parameters:

The address requirement is 1 output word.

The voltage drop is 1.5V.

The required bus current is 350mA.

The product weight is 0.485kg.

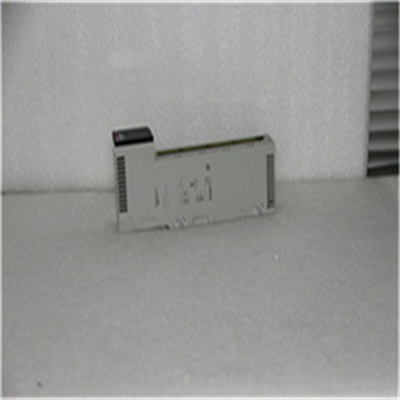

SCHNEIDER 140DAO84000

3.Application fields

The SCHNEIDER 140DAO84000 module is widely used in various industrial automation control systems that require discrete quantity output,such as manufacturing,energy,transportation,water treatment and other fields.Especially in the occasions where it is necessary to control the acquisition and monitoring of a large number of discrete quantity data such as switching quantity,pulse quantity,timer,counter,etc.,the module performs well.

The company mainly imports PLC modules,programmable controllers,servo control systems and DCS spare parts,such as:ABB,AB(Rockwell),GE(General Electric),Bentley,Honeywell Er),Emerson.),Motorola,Invensys,Westinghouse,etc.The company has established close cooperative relations with many world-renowned PLC and DCS product maintenance service providers.We can purchase goods directly from abroad and provide equipment and spare parts from different countries and manufacturers.
We supply goods directly from abroad,without intermediaries,reducing the cost of use.
There is really no medium that can make a difference!!
Shenzhen Changxin Automation-sufficient supply,large spot quantity,guaranteed quality,you can buy with confidence and use with peace of mind~!
If you have any defects or needs for imported PLC and DCS spare parts,please contact our team,we will help you find reliable and high-quality products super quickly,while shortening delivery time to ensure that your equipment can operate normally in the right environment.Just in time.
Professionally provide:PLC programmable control system,distributed control system(DCS),safety instrument system(SIS),ESD system,vibration monitoring system,turbo compressor unit control system(CCS)and other PLC modules,various industrial control systems,system modules,CPU,IO module,DO module,AI module,DI module,network communication module,Ethernet module,motion controller,analog input module,analog output module,digital input module,digital output module,module redundancy,power module,relay output unit,relay input unit,processor unit.
Products are widely used in:electricity,petroleum,mine hoisting,ports,heating,gas,water supply,sewage treatment,metallurgy,papermaking,textile,chemical industry,water conservancy and other modern industrial fields!
