Description

SCHNEIDER 140CPS11420 is a PLC(Programmable Logic Controller)power module produced by Schneider Electric.The following is a detailed introduction to the product:

1.Product Overview

The 140CPS11420 power module is an important part of Schneider’s Modicon series PLC,designed to provide stable DC power to ensure the normal operation of the PLC system.

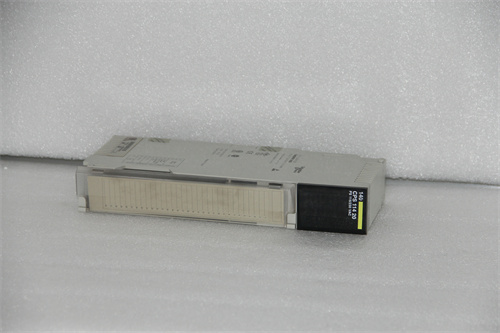

SCHNEIDER 140CPS11420

2.Technical specifications

Brand:Schneider

Product series:Modicon Quantum automation platform

Power supply type:summable or independent

Input voltage:

230V AC(170V~276V)

115V AC(93V~132V)

Frequency:47Hz~63Hz

Input current:

1300mA(115V)

750mA(230V)

Maximum inrush current:

19A(230V)

38A(115V)

Rated power:130VA

Output voltage:usually 5.1V DC(specific valuesneed to refer to the official data sheet)

Power supply output current:

Independent mode:11A(60°C)

Summable mode:20A(60°C)

Protection function:

Output overvoltage protection(internal)

Output overload protection(internal)

Power consumption:6+(1.5×output current)(output current unit is A)

Warning output:1 NC 6A 220V(power failure)

Local signal indication:1 LED(green,indicating normal power supply)

Product certification:CUL

Product weight:0.65kg

Operating temperature:0°C~60°C

Storage environment temperature:-40°C~85°C

Relative humidity:95%(non-condensing)

Working altitude:≤5000m

SCHNEIDER 140CPS11420

III.Product features

Modular design:easy to install and maintain,suitable for control room installation.

Easy to operate,reliable and flexible:adapt to different power supply environments and provide stable power supply support for PLC systems.

Multiple protection functions:including overload protection,short circuit protection,overvoltage protection,etc.,to ensure the safe operation of the power module.

IV.Application field

140CPS11420 power module is widely used in the field of industrial automation,especially in PLC systems that require stable DC power support.It can provide reliable power supply guarantee for various automation equipment to ensure the normal operation and efficient operation of the system.
