Description

140ATI03000 is an analog input module of Schneider brand.The following is a detailed introduction to the module:

1.Basic features

Input quantity and power consumption:The module has 8 analog input channels and power consumption is 1.5W.

Address requirements:10 input words are required for addressing.

Analog input resolution:Up to 16 bits,providing high-precision analog measurement.

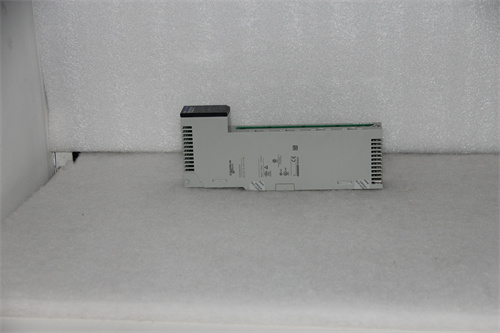

Schneider 140ATI03000

2.Analog input type and parameters

Thermocouple type:Supports a variety of thermocouple types,including S,R,T,K,E and J type thermocouples.

S type thermocouple:measurement range-50~1665℃.

R type thermocouple:measurement range-50~1665℃.

T type thermocouple:measurement range-270~400℃.

K type thermocouple:measurement range-270~1370℃.

E type thermocouple:measurement range-270~1000℃.

J-type thermocouple:measurement range-210~760℃.

Input impedance:greater than 1Mohm,to ensure the accuracy of measurement.

Absolute accuracy error:depending on the type of thermocouple,the error range is between±4℃plus 0.1%reading to±2℃plus 0.1%reading.

Linearity error:in different measurement ranges,the linearity error is maintained within the accuracy of 1℃or 0.1℃,1F or 0.1F.

Temperature offset accuracy:0.15μV/℃+0.0015%reading/℃,to ensure the stability of measurement results.

Schneider 140ATI03000

3.Other parameters

Common mode rejection:greater than or equal to 120dB(50/60Hz),effectively suppressing common mode interference.

Fault type:support Overtacking scale(overrange)and disconnection detection.

Required bus current:280mA,to ensure the stable operation of the module in the system.

IV.Application Scenarios

The 140ATI03000 module is widely used in the field of industrial automation,especially in situations where high-precision analog measurement is required,such as steel mills,hydropower plants,textile machinery,printing and packaging machinery,etc.
