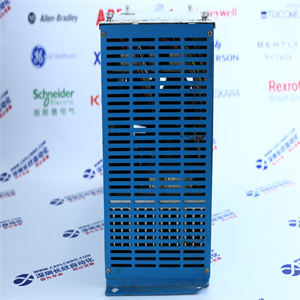

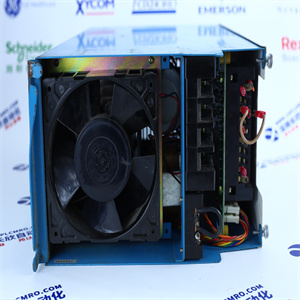

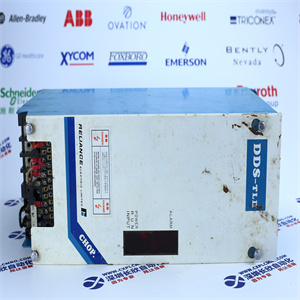

RELIANCE DSA-MTR-60D

Description

RELIANCE DSA-MTR-60D Product Details, Specifications, Product Parameters, and Application Fields (in English):

Product Details:

Brand: RELIANCE, a company specializing in industrial automation and control solutions.
Model Number: DSA-MTR-60D.
Type: This is a variable frequency drive (VFD) module, specifically a motor driver or controller.

Specifications:

Power Supply: Typically designed to operate on a 380V/50Hz external power source.
Input & Output Characteristics: The input current waveform is an irregular rectangular wave, and the output signal is a PWM carrier signal modulated pulse waveform.
Harmonic Disturbance: The device may produce high-order harmonics that can interfere with the input power system and load.

Product Parameters:

PWM Carrier Frequency: The PWM carrier frequency for GTR power elements is 2-3kHz, while for IGBT elements, it can reach up to 15kHz.
Protection: Features various protective measures such as harmonic filtering and isolation transformers to mitigate the impact of harmonic interference.
Communication: The controller may utilize shielded signal lines and specific control line configurations to minimize electromagnetic interference.

Application Fields:

Industrial Automation: The RELIANCE DSA-MTR-60D is commonly used in industrial automation systems, where precise motor control and variable speed drives are required.
Machinery Control: This drive module is often incorporated into machinery and equipment that require adjustable motor speed or torque control for efficient operations.
Energy Efficiency: By allowing fine-grained control of motor speed, the DSA-MTR-60D can contribute to improved energy efficiency in various industrial applications.

Please note that specifications, parameters, and application fields may vary slightly depending on the specific context or configuration of the product. It is always advisable to consult the official product documentation or contact RELIANCE directly for the most accurate and up-to-date information.
