Description

The MVI56E-MCMR is a powerful communication module manufactured by ProSoft Technology,a partner of Allen-Bradley.The following is a detailed introduction to the MVI56E-MCMR communication module:

I.Main Features

MODBUS communication support:The MVI56E-MCMR module supports the MODBUS serial/ASCII communication protocol,a widely used industrial automation communication standard.This allows the module to be easily integrated into existing industrial automation systems and achieve seamless connection with a variety of devices.

Dual RS232 serial ports:The module is equipped with dual RS232 serial application ports,which support RS232/RS485 and RS422 electrical standards.This enables the module to interface with a variety of different devices,providing greater flexibility and compatibility.

Configurable baud rate:The module’s baud rate can be configured from 110 baud to 115.2 kbps,which can be adjusted according to actual application needs to ensure the stability and efficiency of communication.

Flexible serial settings:The MVI56E-MCMR module supports a variety of serial settings,including none,odd or even parity,data bits 5,6,7 and 8,and stop bits 1 or 2.These flexible setting options enable the module to adapt to different communication environments and needs.

RJ45 Ethernet debug/configuration port:In addition to the serial port,the module also comes with an RJ45 Ethernet port for debugging and configuration.This makes the module setup and maintenance more convenient and efficient.The port supports 10/100 base-T transmission speeds,has link and activity LED indicators,and automatic cross-cable detection.

2.Application scenarios

Due to its powerful communication capabilities and flexibility,the MVI56E-MCMR communication module is widely used in industrial automation,control system integration,intelligent device communication and other fields.It can help realize data sharing,remote monitoring and control between devices,and improve production efficiency and management level.

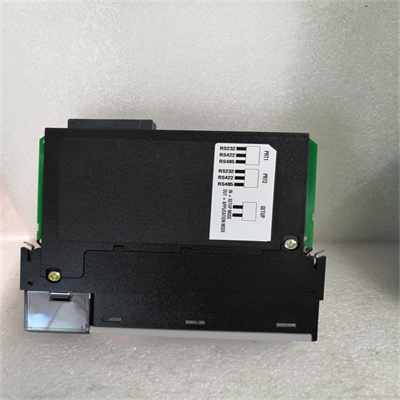

ProSoft MVI56E-MCMR

3.Other features

Single-slot module:The MVI56E-MCMR is a single-slot module that can be directly installed on any 1756 chassis.

Reduced data blocks:The MVI56E-MCMR has reduced data blocks,which means it is more efficient and faster when handling Modbus communications.This is very important for industrial automation applications that require high data transfer rates and low latency.

Modbus master/slave mode support:The module supports Modbus master/slave mode,which means it can either initiate communication requests as a Modbus master or respond to requests from other devices as a slave.This flexibility allows the MVI56E-MCMR to adapt to a variety of different communication scenarios.

4.Configuration and Tools

Configuration Tools:To configure module operations and parameters,you can use ProSoft Configuration Builder(PCB)and Product Discovery Service(PDS).

Simplified Configuration:The module configuration is stored in the RSLogix™5000 project(ACD file),without the need for additional programming or configuration software.Additional instructions for RSLogix 5000 16 or later can reduce development time and cost.

ProSoft MVI56E-MCMR
