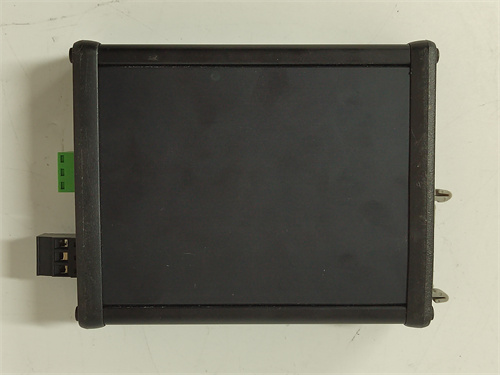

PROSOFT AN-X2-AB-DHRIO

Description

PROSOFT AN-X2-AB-DHRIO is a powerful gateway communication module,mainly used for data transmission and equipment control in industrial automation systems.The following is a detailed introduction to the module:

1.Product Overview

The PROSOFT AN-X2-AB-DHRIO gateway communication module is designed to help customers initiate a phased migration approach to replace or upgrade traditional remote I/O PLCs(programmable logic controllers),HMIs(human-machine interfaces),drives or Flex I/O adapters.Through the built-in web server,the module can display diagnostic data,configure,upload configuration files and set operating modes,providing users with a convenient management method.

2.Main Features

Connecting multiple devices:

The module can connect various types of devices and sensors to achieve data transmission and communication between different devices.

Supports communication with devices using traditional remote I/O(RIO)and data highway enhanced(DH+)communication protocols.

High performance:

Adopting high-speed communication protocols and data processing technology,it can quickly and accurately transmit data to ensure the stable operation of the equipment.

Supports efficient data transmission rate,capable of up to 10/100 mbps,and also supports multiple baud rate configurations,such as 57.6,115.2 and 230.4 K baud rates.

PROSOFT AN-X2-AB-DHRIO

Flexible communication interface:

Supports multiple communication interfaces,such as serial port,Ethernet,etc.,to facilitate connection with various devices and control systems.

Has an Ethernet I/P communication interface and a 2-pin Phoenix network connector,which can achieve daisy chain connection.

Remote monitoring and management:

Remote monitoring and management can be achieved through the network,which is convenient for real-time monitoring and control of equipment and production processes.

Easy to integrate:

Provides easy-to-use development interfaces and tools to facilitate users to carry out system integration and secondary development.

Can be easily integrated into traditional equipment,allowing users to continue to use these devices without complete replacement.

High reliability:

Adopting industrial-grade design and materials,it can operate stably under harsh environmental conditions to ensure the continuity and stability of the production process.

Easy to maintain and upgrade:

The design is simple and convenient for daily maintenance and troubleshooting.

At the same time,it supports remote upgrades and updates,which is convenient for upgrading and improving the system.

PROSOFT AN-X2-AB-DHRIO

3.Application Field

The PROSOFT AN-X2-AB-DHRIO gateway communication module is suitable for data transmission and control needs in various industrial automation applications.Whether it is a new system or an upgrade of an existing system,this module can provide a reliable and efficient communication solution.It is widely used in manufacturing,process control,power industry,building automation and other fields,providing strong support for data transmission and equipment control of industrial automation systems.

4.Technical Specifications

Ports:1 RJ45 10/100 Mbps Ethernet port,1 Phoenix 3-pin power connector,1 Phoenix 3-pin network connector.

Typical power consumption:200 mA 12 V DC or 100 mA 24 V DC.

Maximum power dissipation:2.4W.

Operating temperature:32 degrees F to 122 degrees F(0 degrees C to 50 degrees C).

Storage temperature:-40 degrees F to 185 degrees F(-40 degrees C to 85 degrees C).

Dimensions:107 mm x 126 mm x 34 mm(4.18 in x 4.97 in x 1.33 in)(excluding connectors).

Humidity:5%to 95%relative humidity,non-condensing.
