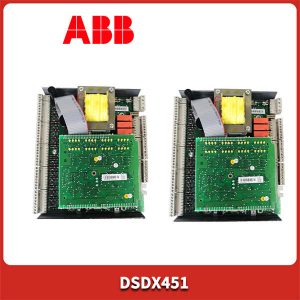

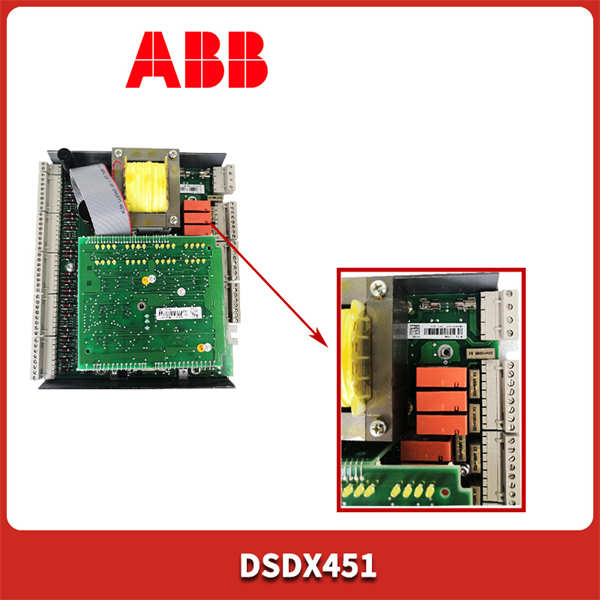

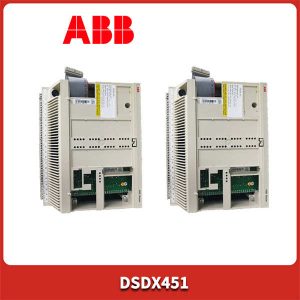

DSDX451 ABB

Description

Product Description,Parameters,Specifications,Series,Features,Functions,Applications,and Fields of Use for the DSDX451 ABB Input/Output Module

Product Description:

The DSDX451 is an input/output module from ABB,designed for use in industrial automation and control systems.This module provides a range of input and output capabilities,allowing for precise and reliable control of various industrial processes and equipment.

Product Description,Parameters,Specifications,Series,Features,Functions,Applications,and Fields of Use for the DSDX451 ABB Input/Output Module

Product Parameters:

Operating Voltage:24V to 240V AC/DC

Input Capacity:20 digital inputs

Output Capacity:12 digital outputs

Output Type:Fully isolated relay contacts

Minimum Load Rating:2.5 VA for 24V AC/DC;100 mA for 24V DC

Additional Versions:Versions with”L”suffix feature low-voltage relay contacts

Maximum Load Rating(L Versions):200 mA

Minimum Load Rating(L Versions):5 mA or 0.05 VA

Product Specifications:

Manufacturer:ABB

Model Number:DSDX45

Type:Input/Output Module

Number of Inputs:20

Number of Outputs:12

Output Type:Relay Contacts

Operating Voltage Range:24V to 240V AC/DC

Series:

The DSDX451 belongs to the DSDX series of input/output modules from ABB.This series offers a range of modules designed for use in various industrial automation and control applications.

Features:

High Reliability:The module is designed for reliable and consistent performance in demanding industrial environments.

Flexibility:Offers a combination of digital inputs and outputs,providing flexibility in system design and control requirements.

Isolation:The relay contacts are fully isolated,ensuring electrical safety and reducing the risk of system failures.

Wide Operating Voltage Range:Compatible with a wide range of operating voltages,making it suitable for use in various industrial applications.

Functions:

Input Function:The module accepts digital input signals from various sensors and devices,allowing for precise control and monitoring of industrial processes.

Output Function:The module provides digital output signals to control various actuators and devices,such as motors,valves,and relays.

Signal Conversion:The module converts input signals into appropriate output signals,ensuring compatibility and smooth operation of the industrial system.

Product Description,Parameters,Specifications,Series,Features,Functions,Applications,and Fields of Use for the DSDX451 ABB Input/Output Module

Applications:

Industrial Automation:Widely used in industrial automation systems for precise control of various processes and equipment.

Robotics:Applied in robotic systems for precise control of robot arms,manipulators,and other robotic devices.

Machinery and Equipment:Used in various machinery and equipment for precise control and monitoring of operational parameters.

Fields of Use:

Manufacturing:Key component in manufacturing processes,improving production efficiency,reducing costs,and enhancing product quality and stability.

Automation and Control:Widely used in automation and control systems for precise and reliable control of industrial processes and equipment.

Robotics and Machinery:Applied in robotics and machinery for precise control and monitoring of various actuators and devices.
