Description
Product Description:

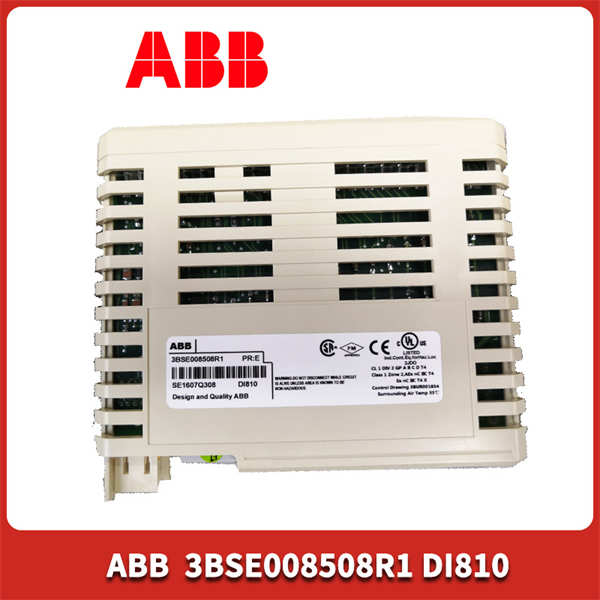

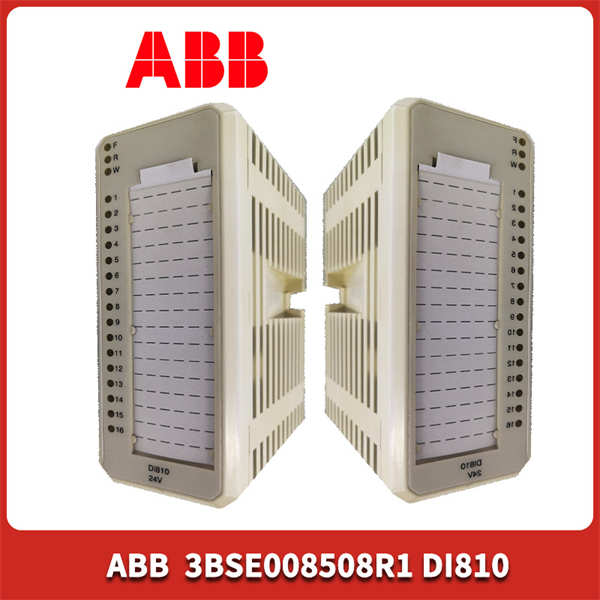

The DI810 is an ABB digital input/output module designed for use in industrial automation and control systems.It provides a range of digital inputs and outputs for monitoring and controlling various devices and processes.
Product Description,Parameters,Specifications,Series,Features,Functions,Applications,and Fields of Use for the DI810 ABB Digital Input/Output Module
Product Parameters:
Number of Digital Inputs:16
Input Voltage Range:18 to 30 Volts DC
Input Current:6mA at 24V
Input Configuration:Split into two independent groups with a voltage monitoring input for each group
Input Protection:Each input channel includes current limiting components,EMC protection,input status indication LED,and optical isolation barrier
Voltage Supervision:If enabled,channels 1-8 and 9-16 will indicate channel errors if the process voltage fails for their respective channel groups.Detection time for this supervision is 70 milliseconds
Digital Filtering:Available with different filtering times of 2,4,8,and 16 milliseconds.This helps to filter out noise pulses shorter than the filter time and allows pulses longer than 3,6,12,and 24 ms to pass through the filter
MTUs Compatibility:Compatible with nine different types of MTUs
Product Specifications:
Manufacturer:ABB
Model Number:DI810
Input Type:16-Channel 24V Digital Input
Dimensions:102mm(W)x 119mm(H)x 45mm(D)
Net Weight:0.2 Kilograms
Series:
The DI810 belongs to the ABB’s range of digital input/output modules specifically designed for use in industrial automation and control systems
Features:
Multiple Digital Inputs:Offers 16 digital inputs for connecting various sensors or switches
Voltage Monitoring:Features a voltage monitoring input for each group of channels,ensuring reliable operation
Protection and Isolation:Each input channel is equipped with protection components and optical isolation barriers for enhanced reliability and safety
Digital Filtering:Provides the option to perform digital filtering to eliminate noise and improve signal quality
Compatibility with Multiple MTUs:Compatible with various types of MTUs for flexible and convenient integration
Product Description,Parameters,Specifications,Series,Features,Functions,Applications,and Fields of Use for the DI810 ABB Digital Input/Output Module
Functions:
Monitoring:Monitors the status of digital inputs,indicating any errors or faults in the system
Control:Provides digital outputs to control external devices or processes based on the input status or system requirements
Communication:Supports communication with other control devices through various interfaces and protocols
Applications:
Industrial Automation:Widely used in industrial automation systems for monitoring and controlling various processes and equipment.
Power Systems:Applied in power generation,transmission,and distribution systems for reliable monitoring and control
Manufacturing:Utilized in manufacturing processes to monitor machine status,control production lines,and ensure efficient operation
Fields of Use:
Industrial Automation and Control:Key component in industrial automation and control systems,ensuring reliable and efficient monitoring and control of various processes and equipment
Energy and Utilities:Applied in energy generation,transmission,and distribution systems for monitoring and managing power systems efficiently
Manufacturing and Processing Industries:Used in various manufacturing and processing industries for monitoring and controlling production processes,machines,and equipment
