Product Description, Parameters, Specifications, Series, Features, Functions, Applications, and Fields of Use for the Spectrum-1746SC-INO4I Module

Description

Product Description, Parameters, Specifications, Series, Features, Functions, Applications, and Fields of Use for the Spectrum-1746SC-INO4I Module

Product Description:

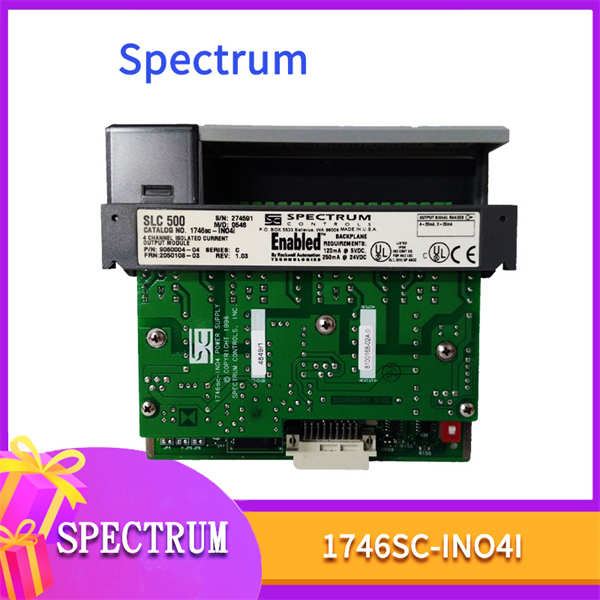

The Spectrum-1746SC-INO4I module is a high-performance analog output module designed for industrial automation and control applications. This module provides four isolated analog current outputs, offering precise control and monitoring capabilities.

Product Description, Parameters, Specifications, Series, Features, Functions, Applications, and Fields of Use for the Spectrum-1746SC-INO4I Module

Product Parameters:

Output Channels: 4 isolated analog current outputs

Supply Voltage: 120VDC (背板供电) or 24VDC (外部电源供电)

Resolution: 16 bits

Accuracy: 366 nanoamperes per count

Isolation: 750VDC channel-to-channel and field wiring to backplane isolation

Thermal Dissipation: 4.5 watts maximum

Update Rate: 33.7 milliseconds for all 4 channels

Step Response Time: 1 millisecond

Product Specifications:

Dimensions: Standard industrial module size

Operating Temperature: Range specified by manufacturer

Compatibility: Compatible with Allen-Bradley and Spectrum Controls systems

Series:

The Spectrum-1746SC-INO4I module belongs to the Spectrum Controls series of analog output modules. This series offers a range of modules with different output channels and specifications, suitable for various industrial control and monitoring applications.

Features:

Isolated Outputs: Provides four isolated analog current outputs for precise control and monitoring.

High Resolution: 16-bit resolution for accurate control and data acquisition.

Fast Response: Quick update rate and step response time for real-time control and monitoring.

Versatile: Compatible with multiple industrial control and automation systems.

Reliable: Rugged construction and isolation features ensure reliable performance in harsh industrial environments.

Functions:

Analog Output: Generates precise analog current outputs for control and monitoring applications.

Isolation: Provides isolation between output channels and between field wiring and the backplane for enhanced safety and reliability.

Data Acquisition: Acquires real-time data from sensors and devices for analysis and decision-making.

Applications:

Industrial Automation: Used in industrial automation systems for precise control and monitoring of various processes and equipment.

Process Control: Applied in process control systems to adjust process parameters and maintain optimal operation.

Manufacturing: Utilized in manufacturing facilities for precise control of production lines and machines.

Energy Management: Used in energy management systems for monitoring and controlling energy distribution and consumption.

Fields of Use:

Manufacturing Industries: Including automotive, electronics, heavy machinery, and more.

Energy and Utilities: For monitoring and controlling power generation, transmission, and distribution systems.

Building Automation: For intelligent control of lighting, HVAC, security, and other building systems.

Transportation Systems: For monitoring and controlling traffic signals, railway systems, and other transportation infrastructure.
