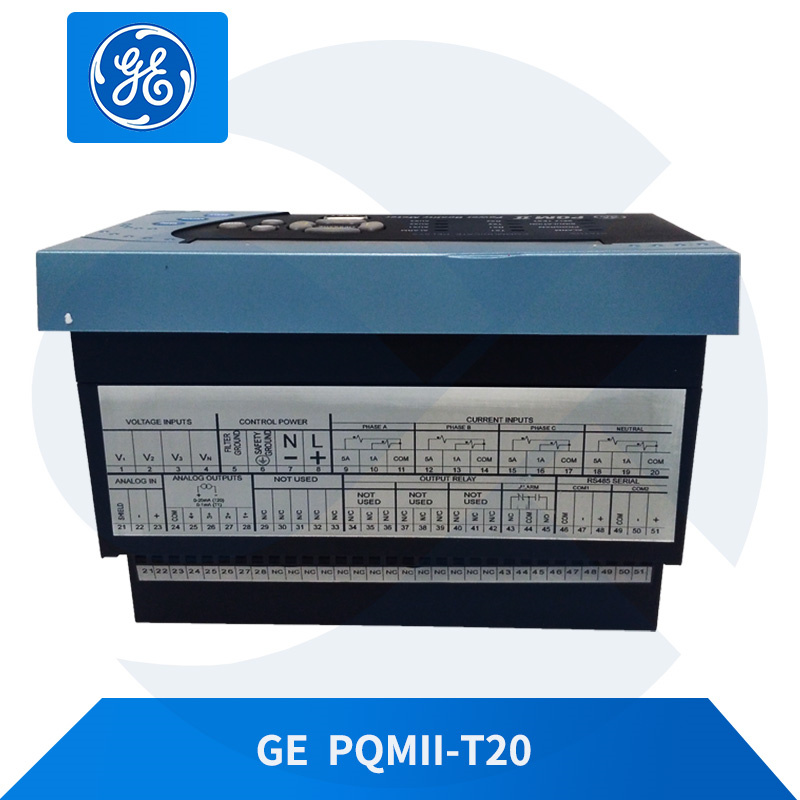

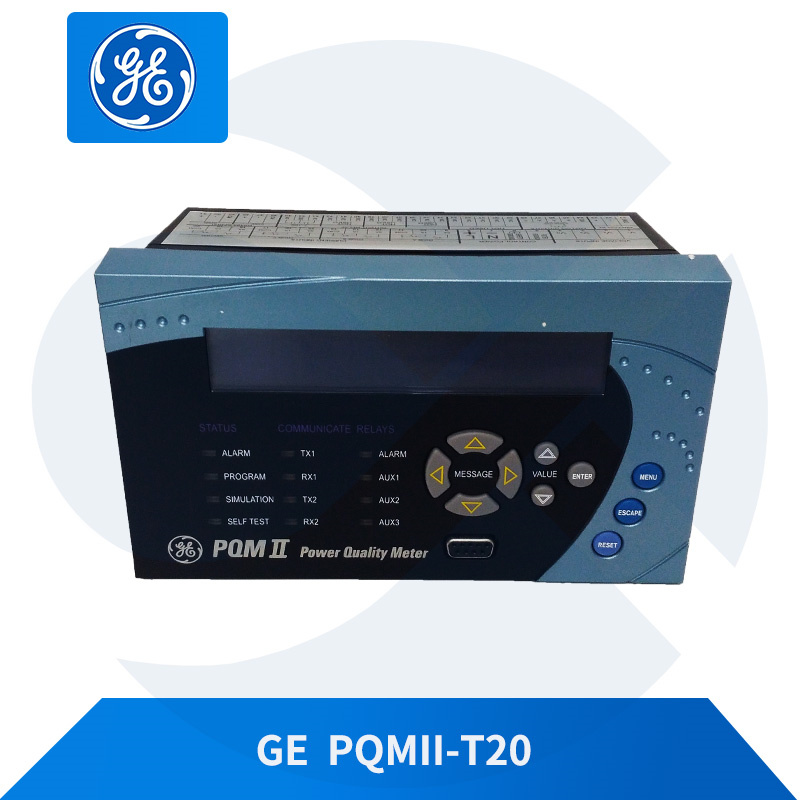

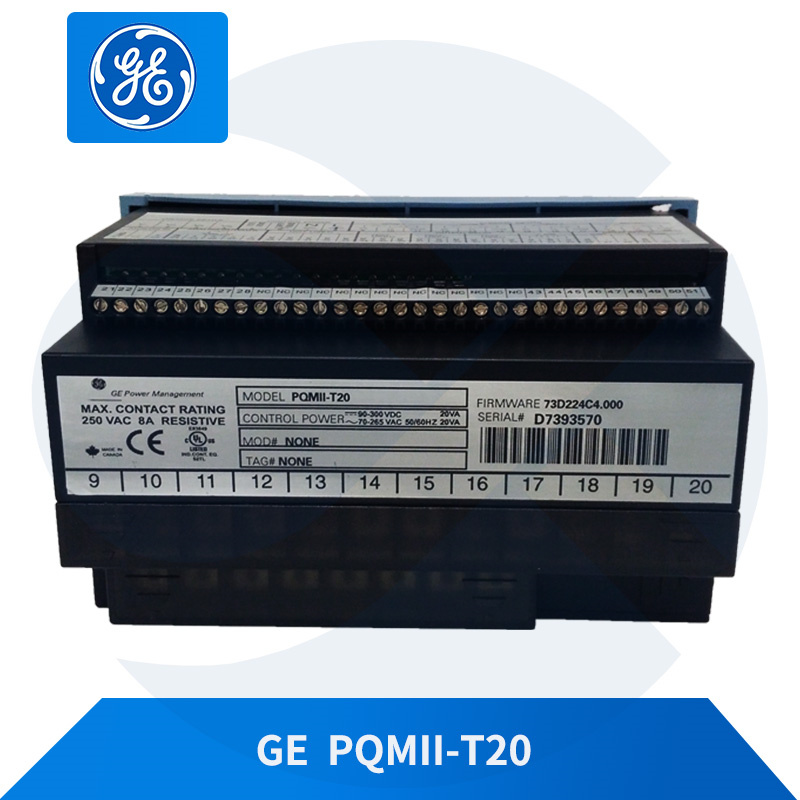

PQMII-T20

Description

The PQMI-T20 is a model 1 assigned by GE for power quality monitors.

The PQMI-T20 is ideal when continuous monitoring of three-phase systems is required. It provides measurement of current, voltage, active and reactive power, energy usage, power cost, power factor and frequency. The PQMI-T20 programmable set points and 4 assignable output relays allow the addition of control functions for specific applications. This includes basic alarms for over/under current or voltage, unbalance, demand-based load shedding and capacitor power factor correction control. More complex control can be achieved using 4 switching inputs, which can also be used for states, such as breaker opening/closing, flow information, etc. 2.

Pqmi-t20 specifications include 1:

Module rate IP20, Class I, 2/ZONE 2.

Each module has field side diagnostics, electronic fuses, or individually isolated inputs/outputs.

A remote terminal block (RTB) or wiring system is required for each I/O module.

ControlLogix Power Supply 1756 chassis provides 1.2V, 3.3V, 5V and 24V DC power supplies directly to the chassis backplane.
