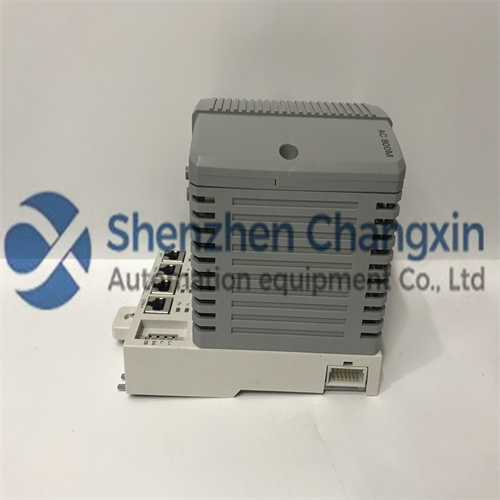

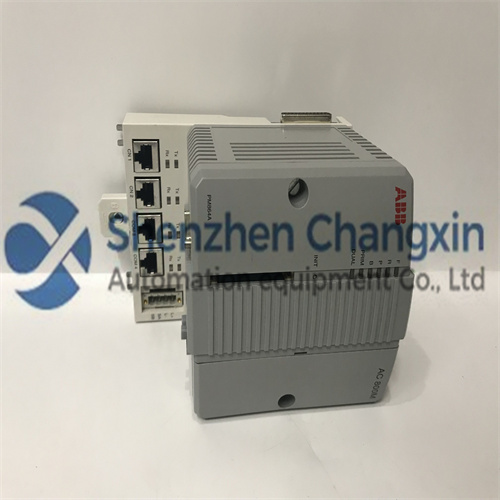

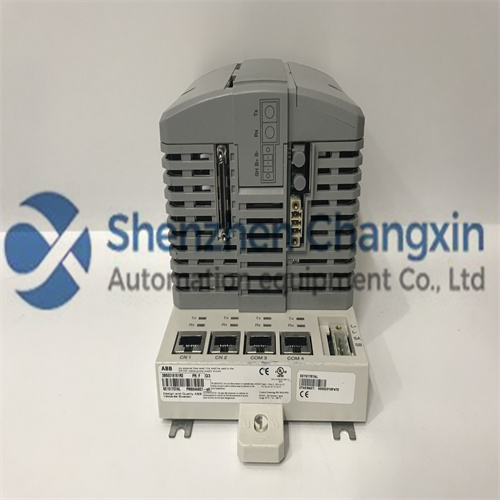

PM864AK01-eA 3BSE018161R2 ABB

Description

• Product Name: PM864AK01-eA 3BSE018161R2
• Product Description: The PM864AK01-eA 3BSE018161R2 is a high-performance power module from ABB. It is designed for use in various industrial power conversion applications, including motor drives, renewable energy inverters, and DC power supplies. The PM864AK01-eA offers high power density, efficiency, and reliability, making it suitable for a range of demanding applications.
• Product Parameters:
• Rated Power: Rated output power of 250 W.
  Voltage Range: Input voltage range of 300-750 VDC or 400-850 VAC.
  Current Rating: Maximum output current rating of 36 A.
  Thermal Characteristics: Thermal impedance of up to 65°C/W.
  Dimensions: Compact size suitable for integration into various power systems.
• Specification:
• The PM864AK01-eA 3BSE018161R2 offers high power density, with optimized heat dissipation for efficient operation.
  It supports various topologies, including half-bridge, full-bridge, and push-pull configurations.
  The power module features advanced protection mechanisms such as overcurrent protection, overvoltage protection, and thermal shutdown to ensure reliable operation.
  It offers a wide range of configuration and protection options, enabling easy integration into custom power systems.
  The PM864AK01-eA 3BSE018161R2 is suitable for use in demanding applications that require reliable and efficient power conversion.
• PM864AK01-eA 3BSE018161R2 (1)
