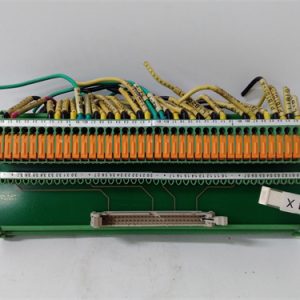

Phoenix 2290614

Description

Phoenix 2290614 is an interface module produced by Phoenix Contact.The following is a detailed introduction to the product:

1.Basic information

Manufacturer:Phoenix Contact

Manufacturer number:2290614

Product series:Varioface

Type:interface module

2.Technical specifications

Number of bits:50

Number of channels:32 channels(for connecting peripheral devices and systems)

Nominal operating voltage(DC):≤60V DC

Current(per branch):≤1A

Current(power supply voltage per byte):≤2A

Rated insulation voltage:63V

Rated overvoltage:0.6kV(1.2/50μs)

Supported controllers:including Siemens S7 series,Allen-Bradley PLC 5,Honeywell Experion PKS C200,Mitsubishi MELSEC L and Q series,Schneider Electric Modicon TSX QUANTUM,etc.

Applicable I/O cards:Varies according to the supported controller model,such as 6ES7521-1BL00-0AB0 of Siemens S7-1500 series,etc.

Phoenix 2290614

III.Physical characteristics

Dimensions:width 213.45mm,height 77mm,depth 52.3mm

Color:gray(RAL 7042)

Housing insulation material:nylon 6.6(green)

Protection level(module):IP00

Protection level(installation location):≥IP54

Ambient temperature(operation):-20°C to 50°C

Ambient temperature(storage/transport):-20°C to 70°C

Altitude:≤2000m

IV.Connection characteristics

Interface 1(control layer):

Connection compliance standard:IEC 60603-13

Connection method:IDC/FLK pin strip

Number of connections:1

Number of positions:50

Insertion/removal cycles:>50

Pitch:2.54mm

Interface 2(field side):

Connection method:Screw connection with knife switch disconnection

Wire stripping length:8mm

Phoenix 2290614

Thread:M3

Number of positions:40

Rigid wire cross-section range:0.2mm²to 4mm²(depending on the number of wires and whether there is a plastic sleeve)

Flexible wire cross-section range:0.2mm²to 4mm²or 0.25mm²to 2.5mm²(depending on whether there is a plastic sleeve and the number of wires)

Connectable guide cross-section:AWG24 to 12

Tightening torque:0.5Nm to 0.6Nm

Pitch:5.08mm

Interface 3(field side):

Connection method:Test socket

Number of positions:40

V.Application and compatibility

Phoenix The 2290614 interface module is suitable for various industrial automation and control systems,especially for applications that require high precision and reliable connections.It supports a variety of controllers and I/O cards,and can achieve seamless connection with various peripheral devices and systems.
