NI SCXI-1300

Description

NI SCXI-1300 is a multifunctional signal conditioning module from National Instruments(NI).The following is a detailed introduction to the product:

I.Product Overview

NI SCXI-1300 belongs to the SCXI(Signal Conditioning for XI)series and provides a variety of signal conditioning functions,including voltage measurement,signal isolation,analog output and digital I/O,etc.,suitable for various test,measurement and control applications.

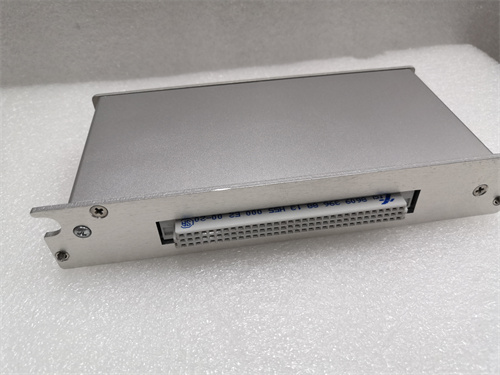

NI SCXI-1300

II.Technical Specifications

Number of input channels:16 channels(analog input)

Input range:±10V(analog input)

Resolution:16 bits(analog input)

Sampling rate:up to 500kS/s(analog input)

Number of digital I/O channels:8 channels

Isolation capability:2.5kV AC/DC

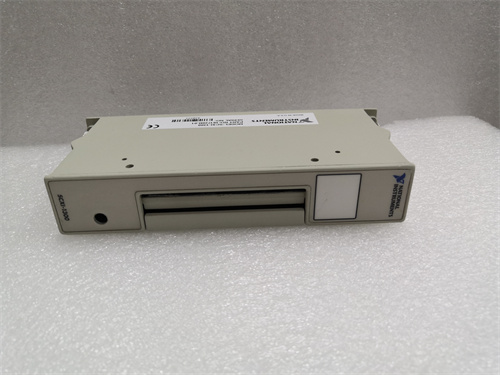

NI SCXI-1300

III.Functional features

Versatility:It integrates multiple functions such as analog input,signal isolation,analog output and digital I/O to meet various signal conditioning needs.

High-precision measurement:It uses high resolution and advanced signal processing technology to ensure the accuracy of measurement results.

Signal isolation:Provides isolation capability up to 2.5kV AC/DC,effectively preventing electrical noise and interference.

Fast sampling:Supports sampling rates up to 500kS/s,suitable for the acquisition of high-speed dynamic signals.

Digital I/O function:Provides 8 configurable digital I/O channels for easy control and monitoring of digital signals.

IV.Application scenarios

NI SCXI-1300 is suitable for industrial automation,test and measurement,scientific research experiments,energy management and other fields,especially in applications requiring multifunctional signal conditioning and isolation.

V.Other features

Onboard temperature sensor:NI SCXI-1300 is equipped with an onboard temperature sensor that can operate with an accuracy of 1.3°C and a repeatability of 0.5°C±in the range of 0 to 50°C.The sensor generates an output of 10mV/°C(from 0 to 50°C to 0.5V).

Terminal block design:The module can be easily installed in front of the SCXI module and is equipped with a 96-pin DIN output connector,through which it can be connected to the SCXI module.

Physical dimensions and operating environment:The NI SCXI-1300 is a small device with physical dimensions of 49.3×4.3×18.8cm and is designed to operate over a wide temperature range.The recommended operating and storage temperature ranges are 0 to 50°C and-20 to 70°C,respectively,and the non-condensing relative humidity range is 10 to 90%.
