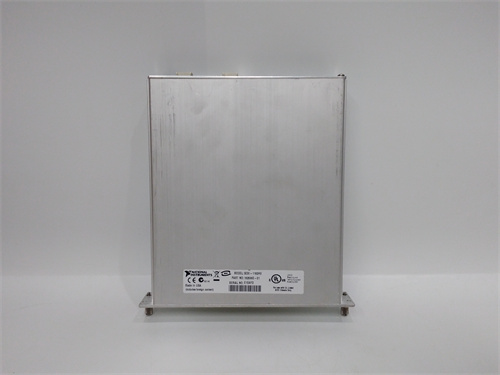

NI SCXI-1162HV

Description

SCXI-1162HV is an optically isolated digital input module produced by National Instruments(NI)and belongs to the SCXI(Signal Conditioning eXtensions for Instrumentation)series.The following is a detailed introduction to SCXI-1162HV:

I.Product Overview

The SCXI-1162HV module is designed to provide reliable digital signal input in harsh industrial environments.It uses optical isolation technology to effectively eliminate ground loop problems and separate the host from harmful voltages,thereby protecting the measurement system from electrical noise and interference.The module has high performance,high reliability and easy integration,and is suitable for a variety of test and measurement applications.

NI SCXI-1162HV

II.Main Features

Optical isolation technology:Optical couplers are used to achieve electrical isolation of input signals from the host system,which improves the system’s anti-interference ability and safety.

Multi-channel input:SCXI-1162HV provides 32 optically isolated digital input channels,which are organized into 8 independent groups(or”banks”),each with 4 input lines.This design enables the module to process multiple digital signal inputs simultaneously,improving the efficiency and flexibility of data acquisition.

Wide input range:Able to sense the presence of various AC or DC signals,which can be any digital logic level signal to 240VAC/VDC signal.This allows the SCXI-1162HV to adapt to different sensors and signal sources.

High reliability:The use of high-quality components and manufacturing processes ensures the long-term stable operation and reliability of the module.At the same time,optical isolation technology also improves the module’s anti-interference ability and service life.

Easy to integrate:The SCXI-1162HV module can be seamlessly integrated with NI’s DAQ card(data acquisition card)and configured and controlled through NI’s LabVIEW or other programming environments.This enables users to easily build complex data acquisition systems and realize automated testing and data analysis.

3.Technical Specifications

Here are some of the main technical specifications of the SCXI-1162HV:

Number of input channels:32 optically isolated digital input channels

Channel organization:8 independent groups(4 input lines per group)

Input signal range:digital logic level signal to 240VAC/VDC

Maximum transmission rate:460.8kb/s(may vary depending on the specific configuration and application scenario)

Operating voltage:usually nominally±10V(but the operating voltage mentioned in some descriptions is 220V,which may be related to the specific application scenario or product series,and needs to be confirmed based on the actual product)

Storage capacity:512MB(used to store configuration information,calibration data,etc.)

Usage environment:normal temperature and pressure

Warranty period:usually 1 year(the specific warranty period may vary depending on the seller and purchase terms)

NI SCXI-1162HV

4.Application field

SCXI-1162HV modules are widely used in various test and measurement fields,including but not limited to:

Industrial automation:used for sensor signal acquisition and monitoring on production lines,and signal input of automation control systems.

Aerospace:used for digital signal acquisition and monitoring in flight testing,engine testing and other applications.

Automobile manufacturing:used for digital signal input and data acquisition in applications such as automotive durability testing and emission testing.

Oil and gas:used for digital signal monitoring and control in oil and gas field exploration,mining and production processes.

Environmental monitoring:used for digital sensor signal acquisition and data analysis in environmental monitoring systems.
