NI SCXI-1104C

Description

NI SCXI-1104C is a high-performance,multi-channel analog signal acquisition module produced by National Instruments(NI).The following is a detailed introduction to the module:

I.Product Overview

The NI SCXI-1104C data acquisition module is designed for applications that require high-precision data acquisition,such as test measurement,automated control,scientific research,etc.It uses a high-performance ADC(analog-digital converter)to provide high-resolution and high-precision data acquisition,while supporting simultaneous acquisition of multiple channels,and can connect multiple sensors or signal sources for data acquisition.

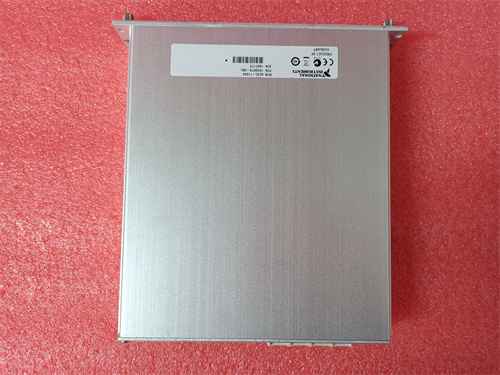

NI SCXI-1104C

II.Main Features

High performance:The module uses a high-performance ADC to quickly and accurately acquire analog signals and provide high-resolution data output.

Multi-channel acquisition:Supports simultaneous acquisition of multiple channels,usually supporting 32 single-ended or 16 differential input channels,which can meet the needs of multi-channel data acquisition.

Flexibility:With programmability,the module can be configured and controlled using programming languages​​(such as LabVIEW)to meet the needs of specific applications.At the same time,the size and shape of the module may vary depending on the model,suitable for installation in various types of chassis or racks,with good compatibility and configurability.

Real-time processing and analysis:Supports real-time processing and analysis of collected analog signals,and can quickly respond to various changes and abnormal situations.

Compatibility:Compatible with other hardware and software products of National Instruments,can be connected to other instruments or computers,such as PCI interface,Ethernet interface,etc.,to facilitate users to integrate into existing systems or platforms.

III.Technical specifications

Number of channels:Supports 32 single-ended or 16 differential input channels.

Resolution:High-resolution ADC,capable of providing high-precision data acquisition.

Sampling rate:Depends on the specific model and application requirements.

Interface:Supports a variety of interface options,such as USB,PCI,PXI and Ethernet,etc.,for easy connection with computers or control systems.

Other features:Equipped with a 10kHz cutoff frequency filter;recommended warm-up time is 20 minutes;operating temperature is 0 to 50°C;analog output has short-circuit protection function,but no overvoltage protection,so applying external voltage to this output may damage the module.

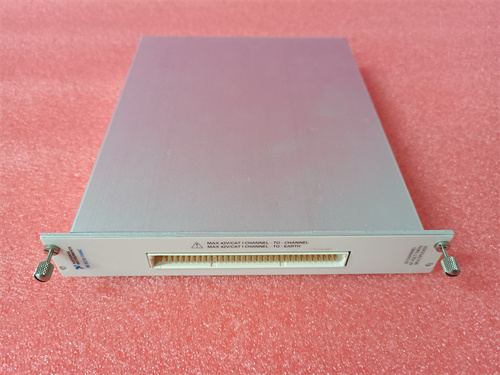

NI SCXI-1104C

IV.Application field

NI SCXI-1104C data acquisition module is widely used in various fields requiring high-precision data acquisition,such as industrial automation,test measurement,scientific research,etc.It can be used to collect,monitor and analyze analog signals in real time,such as the measurement of physical quantities such as temperature,pressure,flow,vibration,etc.
