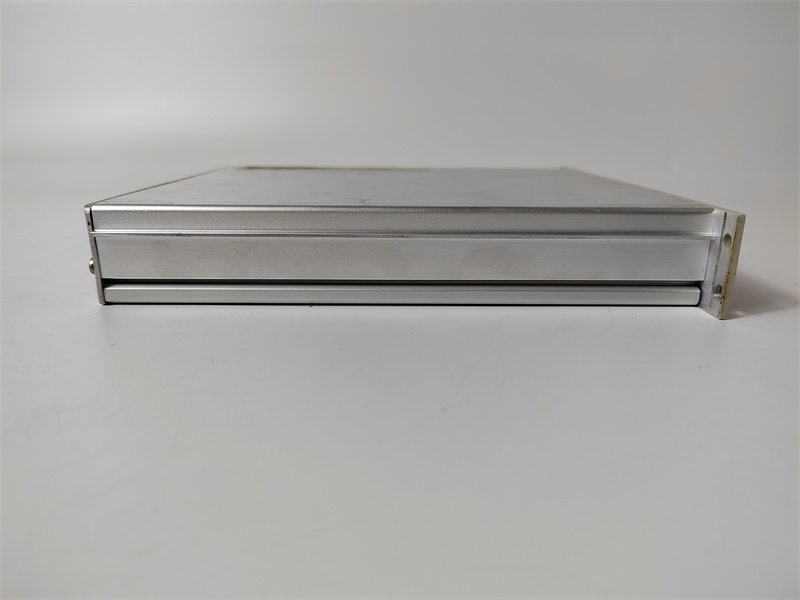

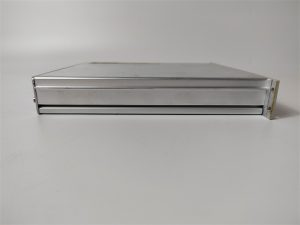

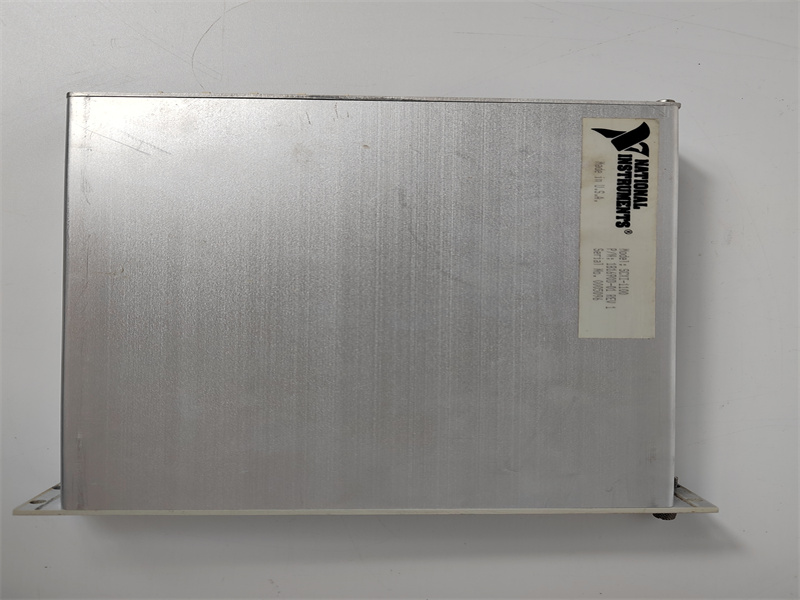

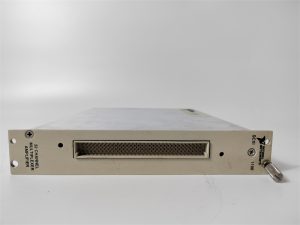

NI SCXI-1100 National Instruments

Description

NI SCXI-1100 Product Parameters, Specifications, and Features.

Product Parameters.

Model: NI SCXI-1100
Manufacturer: National Instruments (NI)

Product Specifications.

Type: Voltage input module designed for signal conditioning of millivolt, volt, and current signals.
Application: For acquisition of voltage input signals.
Connection: All channels are multiplexed through a jumper-selectable 4 Hz low-pass filter, providing multiple gain range options.
Power Supply: Provides the required power supply for sensors and measurement devices connected to the SCXI system.

Product Features.

Modular Design: NI SCXI-1100 power supply modules are typically modular in design, allowing the user to add or change modules as needed for the application.
Main Characteristics.
Power Outputs: Typically have multiple power output channels to provide power to sensors and devices connected to the SCXI system.
Adjustable Voltage: Modules typically support adjustable voltage outputs to meet the power needs of different sensors and devices.
Overcurrent Protection: It usually includes overcurrent protection to prevent devices from being damaged by current overload.
Short-circuit protection: Some modules have short-circuit protection to prevent problems caused by short-circuits.
Communication Interface: It can usually communicate with other modules and systems through the SCXI system’s bus interface for data transfer and control.
