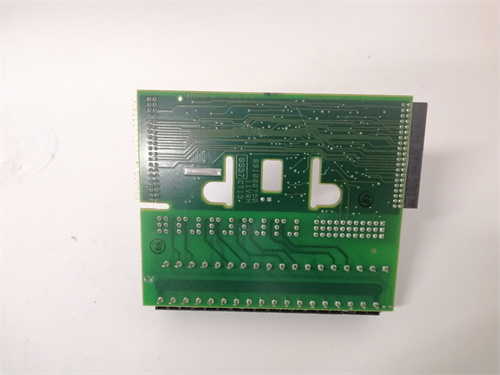

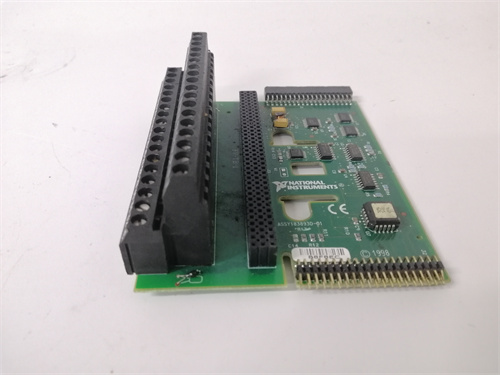

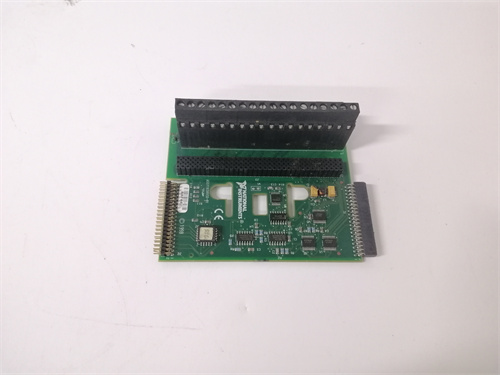

NI FP-TB-1

Description

NI FP-TB-1 is a relay module or terminal base produced by National Instruments(NI).The following is a detailed introduction to the product:

I.Product Overview

As part of the FieldPoint I/O system,NI FP-TB-1 provides intra-system communication connections between FieldPoint I/O modules and the network,and provides wiring methods and installation mechanisms for field connections.It can be used with all FieldPoint I/O modules and is suitable for scenarios that require screw terminal or spring terminal connections.

NI FP-TB-1

II.Product Features

Relay module(if applicable):

Provides relay output channels that can be used to control external devices such as switches,lights,motors,etc.

Relays may control outputs through digital signals,which can be set through programming or user interfaces.

May allow users to program according to specific needs to implement customized control logic and operations.

May be equipped with protection and isolation circuits to protect the control system from electrical interference and damage.

Terminal base:

V and C terminals provide common external power supply voltages for all channels.

Supports DIN rail mounting or panel mounting,allowing users to choose the appropriate installation method according to actual needs.

32 terminals are provided for field connection to meet various wiring needs.

Screw terminals(FP-TB-1)are provided to facilitate user wiring operations.

NI FP-TB-1

III.Technical specifications

Ambient temperature:

Operating temperature range:-40 to+70°C.

Storage temperature range:-55 to+100°C.

Other specifications:

The choice of terminal base depends on the type of field wiring terminal,that is,screw terminals or spring terminals.

Can be used with other products in the FieldPoint I/O module series to achieve system flexibility and scalability.

IV.Application scenarios

NI FP-TB-1 is suitable for various industrial automation,process control,data acquisition and transmission scenarios.It can exchange data with other control systems or devices to achieve information sharing and remote control.At the same time,its programmability and flexibility allow users to customize settings and controls according to actual needs.
