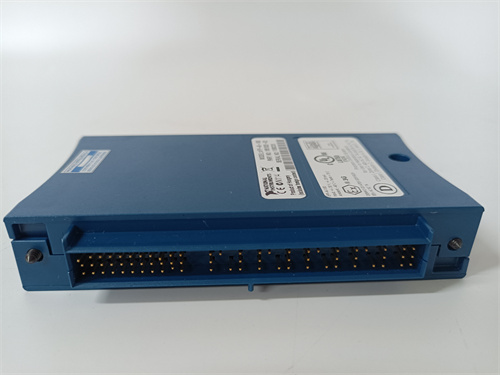

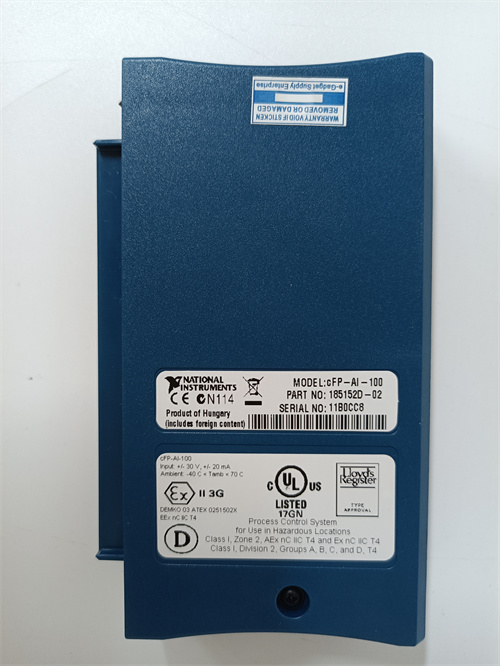

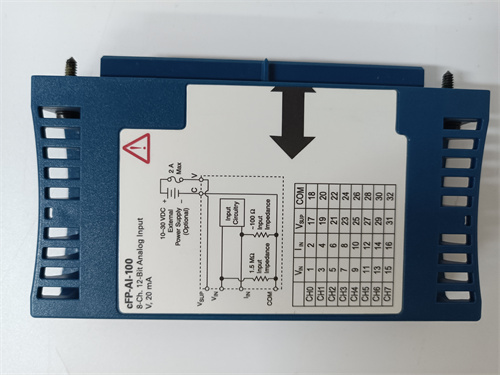

NI CFP-AI-100

Description

CFP-AI-100 is an analog input module manufactured by National Instruments(NI for short).The following is a detailed introduction to it:

I.Product Overview

The CFP-AI-100 analog input module is designed for data acquisition and measurement applications.It can convert analog signals(such as voltage,current,temperature,etc.)into digital signals for further processing and analysis by computers or control systems.This module is widely used in scientific experiments,engineering measurements,automated control systems,data acquisition and monitoring systems,etc.

II.Main Features

Multi-channel design:The CFP-AI-100 module has 8 analog input channels,which can collect multiple analog signals at the same time,improving the efficiency and accuracy of data acquisition.

NI CFP-AI-100

High resolution:The module uses a 12-bit resolution analog-to-digital converter(ADC),which can accurately convert analog signals into digital signals to meet the needs of high-precision measurement.

Multiple input ranges:CFP-AI-100 supports multiple input ranges,including 0-1V,0-5V,0-15V,0-30V,±1V,±5V,±15V,±30V,and current ranges such as 0-20mA,4-20mA,and±20mA,which can adapt to the needs of different application scenarios.

High-speed update rate:The module provides a 360Hz update rate on all channels,which can collect and update data in real time to ensure the timeliness and accuracy of the data.

On-board diagnostics and overhang functions:CFP-AI-100 is equipped with on-board diagnostics and overhang functions,which facilitates users to troubleshoot and maintain modules,and improves system reliability and stability.

Common ground reference:All eight channels share a common ground reference,which is isolated from other modules installed in the FieldPoint system,ensuring the accuracy and safety of signal acquisition.

Indicator design:The module has red and green LED indicators,which facilitate users to view the power and ready status of the device,as well as out-of-range alarms.

3.Application fields

Scientific experiments and research:In scientific research laboratories,CFP-AI-100 is used to acquire and analyze analog data to support scientific experiments and research.

Industrial automation:In the field of industrial automation,this module is used to monitor and control analog signals in industrial processes,such as temperature,pressure,and flow,to improve production efficiency and product quality.

Data acquisition:CFP-AI-100 can be used to collect analog data in laboratories,industrial environments,or other applications,providing strong support for data analysis and decision-making.

Control system:In the control system,this module is used to monitor and control analog signals to achieve precise control of equipment and processes and improve the stability and reliability of the system.

NI CFP-AI-100

4.Technical parameters

Manufacturer:National Instruments

Model:CFP-AI-100

Number of channels:8 analog input channels

Resolution:12 bits

Interface:Supports multiple interfaces such as PCI,USB,Ethernet,etc.

Measurement range:Multiple current and voltage ranges are optional

Update rate:360Hz

Operating temperature range:-40°C to 85°C(some data are-40°C to 70°C,please refer to official data for specific details)

Storage temperature range:-55°C to 85°C(non-condensing)

Relative humidity range:10%to 90%

Vibration:Random and sinusoidal operating vibrations are 5grms and 5g respectively,and the frequency range is 10Hz to 500Hz
