Description
Product Description

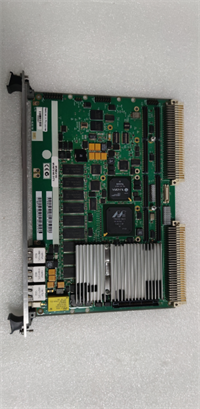

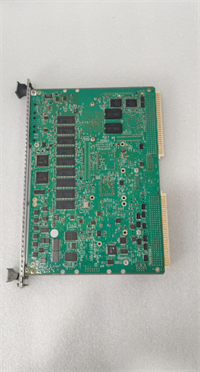

MVME6100 EMERSON VME Single Board Computer
Series
Emerson MVME6100 series
Function
As the core component of industrial control systems,execute control programs
Purpose
Industrial automation control system
Military and Aerospace
Communication and Networking
Medical and scientific instruments
Features
2eSST VMEbus protocol,the entire VMEbus transmission rate is 320MB/s
Migration path from existing Motorola VMEbus platform
A high-performance MPC7457 PowerPC processor with a running frequency of 1.267 GHz
128 bit AltiVec coprocessor for parallel processing
Up to 1GB onboard DDR ECC memory
Two 33/66/100 MHz PMC-X stations allow the addition of industry standard,application specific modules
Dual Gigabit Ethernet interface
128MB flash memory in two 64MB storage units
The MVME6100 EMERSON VME single board computer is the first VMEbus single board computer(SBC)designed with Tundra Tsi148 VMEbus interface chip,providing 2eSST VMEbus performance.The 2eSST(Two Edge Source Synchronous Transmission)protocol enables VMEbus to operate at an actual bandwidth of 320MB/s in most cases.The 2eSST protocol has been in existence for some time,but so far,the 2eSST board cannot work on the standard VMEbus backplane because the existing VMEbus transceivers cannot support the required VMEbus 2eSST signal speed.Texas Instruments(TI)has developed a new type of VMEbus transceiver that supports the VMEbus signal switching speed required for the 2eSST protocol.
Product Description
The MVME6100 EMERSON VME single board computer is a high-performance and highly reliable VME single board computer designed specifically for industrial control systems.It has the following characteristics:
High performance:based on NXP®MPC7457 PowerPC®Processor,with a main frequency of up to 1.267 GHz,providing powerful computing power
High reliability:Adopting redundant design,including CPU redundancy,power redundancy,and memory redundancy
Easy to maintain:supports hot swapping and can be maintained while the system is running
Product Description
The MVME6100 EMERSON VME single board computer adopts a modular design,which is easy to install.It has the following structure:
CPU module:includes processor,memory,and cache
I/O module:includes various I/O interfaces
Product parameters
Processor:NXP®MPC7457 PowerPC®
Main frequency:1.267 GHz
Memory:Up to 2 GB DDR ECC memory
Storage:Up to 128 MB flash memory
I/O interfaces:including 2 PMC-X interfaces,2 Gigabit Ethernet interfaces,1 serial port,and 1 parallel port
Product specifications
Dimensions:233mm x 102mm x 41mm
Weight:1.2kg
Application field
The MVME6100 EMERSON VME single board computer can be widely used in industrial automation control systems,military and aerospace,communication and networking,medical and scientific instruments,and other fields.
Here are some specific application examples:
In industrial automation control systems,used to control production lines,robots,and other equipment
In the military and aerospace fields,used to control aircraft,ships,and other weapon systems
In the field of communication and networking,used to control routers,switches,and other network devices
In the field of medical and scientific instruments,used for controlling medical equipment and scientific instruments
