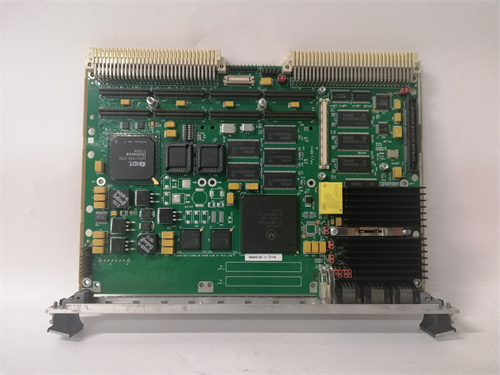

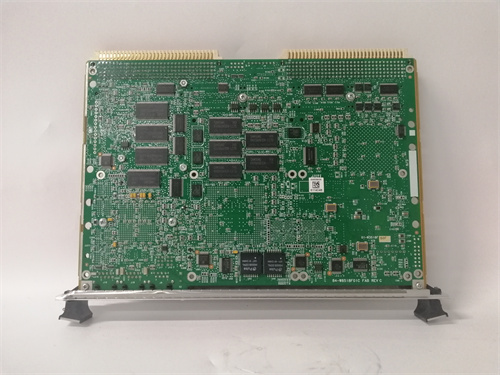

MVME-5100

Description

MVME-5100 is a high-performance VME(VersaModule Eurocard)module designed and produced by Motorola.The following is a detailed introduction to MVME-5100:

1.Basic Overview

Brand:Motorola

Model:MVME-5100

Type:VME processor module

2.Technical Features

Processor:

MVME-5100 adopts Motorola’s PowerPlus II architecture,and can choose PowerPC processors such as MPC7400,MPC7410(using AltiVec technology),MPC750 or MPC755.

These processors have high-performance computing capabilities and support fast response and high-precision control.

Memory and Cache:

Integrated highly optimized PCI interface and memory controller.

Supports up to 582MB/s memory read bandwidth and 640MB/s burst write bandwidth.

With 32KB/32KB L1 cache,and up to 2MB auxiliary back cache.

Bus and Interface:

100MHz front-side bus.

Provides 64-bit PCI expansion mezzanine connector to support up to four PMC(Processor Module Card)expansion slots.

Dual IEEE P1386.1-compatible 32/64-bit PMC expansion slots.

MVME-5100

Dual 16550-compatible asynchronous serial ports and dual 10BaseT/100BaseTX Ethernet interfaces.

Memory:

Onboard 64MB,128MB or 512MB ECC SDRAM,expandable to 1GB via optional RAM500 memory expansion module.

Up to 17MB flash memory.

Other Features:

32KB NVRAM and clock with replaceable battery backup.

Four 32-bit timers and one watchdog timer.

On-board debug monitor.

Single VME slot design,even when fully configured with two PMC modules and two additional memories can maintain compactness.

III.Application Areas

MVME-5100 is designed to meet the needs of original equipment manufacturers serving the military and aerospace,industrial automation and semiconductor process equipment market segments.Its high performance,reliability and scalability make it an ideal choice in these fields.

MVME-5100

IV.Product Advantages

High performance:It uses advanced PowerPC processor and high-speed bus technology to provide excellent computing performance and data processing capabilities.

High reliability:As a well-known electronic product manufacturer,Motorola’s product quality and reliability are widely recognized.

Scalability:Through PMC expansion slots and multiple communication interfaces,the function and performance of the system can be easily expanded.

Easy to maintain:The modular design makes fault diagnosis and replacement relatively easy,reducing maintenance costs.
