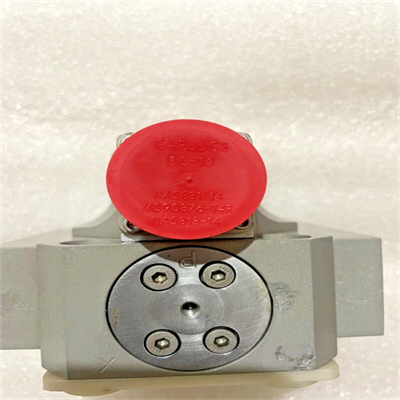

MOOG G761-3025 PLC1

MOOG G761-3009A PLC1

Product Model: MOOG G761-3009A PLC1

Product Parameters:

• MOOG G761-3009A PLC1 is a part of the MOOG G761 series of servo valves. This series is known for its high performance as a two-stage electro-hydraulic servo valve. It has a rated flow rate ranging from 4L/min to 63L/min at a rated pressure drop of 7Mpa¹.
•

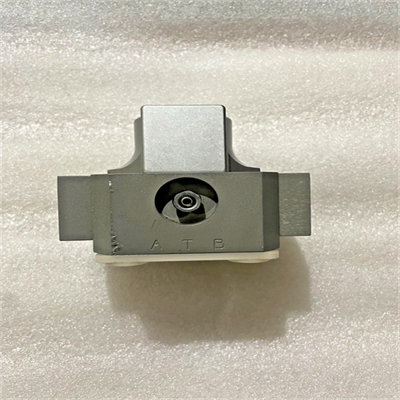

  MOOG G761-3025 PLC1

• Maximum working pressure: 315 bar¹².
• Frequency response: 90 ~ 180 Hz (+/-10% signal, -3db)¹².
• Step response: 6 ~ 9 msec (valve shaft from 0 –> full open, with pilot pressure of 210 bar)¹².
• Resolution: < 0.5%³⁴.
• Hysteresis: < 3%¹².

Product Specifications:

• MOOG G761-3009A PLC1 is a dual-stage servo valve with a symmetric double-nozzle flapper valve as the pilot stage, driven by a dry dual-air-gap force motor. The output stage is a four-way spool valve¹.
• The valve position is mechanically fed back by a cantilever spring rod¹.
• The valve is designed to be structurally simple, robust, reliable, and have a long service life¹.

Dimensions and Weight:

• Specific dimensions and weight for the MOOG G761-3009A PLC1 are not readily available from the information provided. You would need to consult the manufacturer’s documentation or technical specifications for detailed physical parameters.
•

  MOOG G761-3025 PLC1

Features:

• High performance two-stage electro-hydraulic servo valve.
• Symmetric double-nozzle flapper valve as the pilot stage.
• Four-way spool valve output stage.
• Mechanical feedback via cantilever spring rod.
• Simple structure, robustness, reliability, and long service life.

Functions:

• MOOG G761-3009A PLC1 is used as a flow control valve, capable of functioning as a three-way or four-way throttling valve. It offers better control performance when used as a four-way valve³.

Application Areas:

• MOOG G761-3009A PLC1 is typically used in applications requiring precise fluid control, such as material testing machines, earthquake simulation testing machines, aluminum cold rolling mills, and other industrial automation systems².

Please note that for the most accurate and up-to-date information on dimensions, weight, and other specific details, you should refer to the manufacturer’s official documentation or contact MOOG directly.
