IS220PDIAH1B GE High-Speed Turbine Control Circuit Board

Description

IS220PDIAH1B GE High-Speed Turbine Control Circuit Board

Product Description:

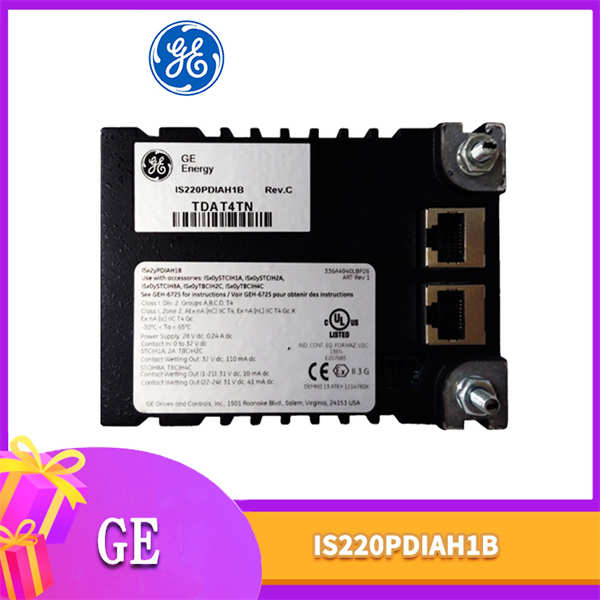

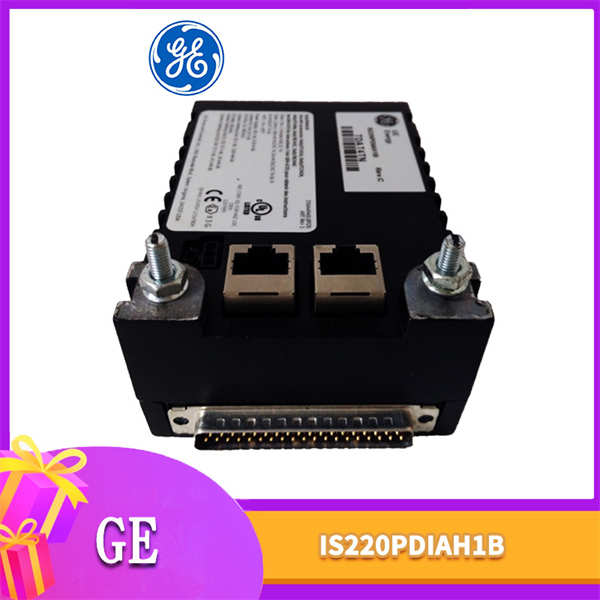

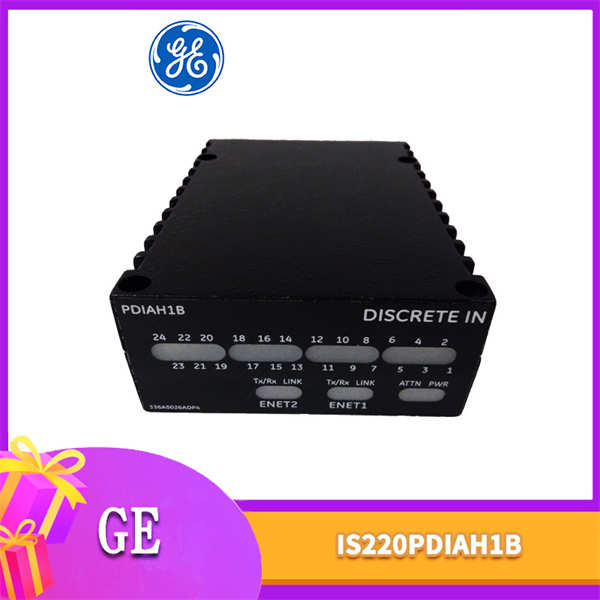

The IS220PDIAH1B is a high-speed turbine control circuit board manufactured by General Electric (GE). This board is specifically designed for use in controlling high-speed turbines and integrates with various components and terminals of the turbine control system.

IS220PDIAH1B GE High-Speed Turbine Control Circuit Board

Product Parameters:

Input Voltage Range: 85-132 VAC

Input Frequency Range: 47-63 Hz

Input Current: Maximum 1.5 A (RMS)

Surge Current: 20 A (maximum), lasting for 1 cycle

Output Voltage Range: 22-28 VDC

Line Regulation: ±0.5%

Load Regulation: ±1.0%

Output Ripple and Noise: Maximum 150 mVp-p

Operating Temperature Range: -40°C to +70°C

Product Specifications:

Dimensions: 5.00 x 3.00 x 1.38 inches

Weight: Not specified.

Power Output: 40 Watts

Efficiency: 89%

Series:

The IS220PDIAH1B belongs to the Mark VIe series of control components from GE, specifically designed for use in turbine control systems

Features:

Compatibility: The board is compatible with various GE terminal blocks, including IS200STCIH1A and 2A, IS200STCIH8A, Is200TBCIH2C or H4C, IS400TBCIH2C, IS400STCIH1A or 2A, and IS400STCIH8A

UL Approval: The board is approved for use in both non-hazardous and hazardous locations

Robust Design: It features a robust design with industrial-grade components, ensuring reliability and durability in harsh environments

IS220PDIAH1B GE High-Speed Turbine Control Circuit Board

Functions:

Control and Monitoring: The board provides control and monitoring capabilities for high-speed turbines, regulating their operation based on various input signals and parameters

Signal Processing: It processes input signals from various sensors and devices, converting them into usable data for the control system

Data Exchange: The board interfaces with other components and systems, facilitating data exchange and integration

Applications and Uses:

The IS220PDIAH1B is primarily used in industrial automation and control systems, specifically for controlling high-speed turbines in power generation, oil and gas, and other industrial processes. It integrates with various sensors, actuators, and other components to provide precise control and monitoring of turbine operations
