IS215UCVEM06A GE controller board

　　Product Description

　　IS215UCVEM06A GE controller board

　　Series:

　　GE Mark VI IS200 series

　　Function:

　　As a controller board for the General Electric Speedtronic Mark VI turbine series,used to control the operation of turbines

　　Usage:

　　Power system

　　Petrochemical industry

　　Metallurgy

　　Features:

　　High performance:based on Motorola PowerPC 603e processor

　　High reliability:adopting redundant design

　　Easy to maintain:supports hot swapping

　　Product Description:

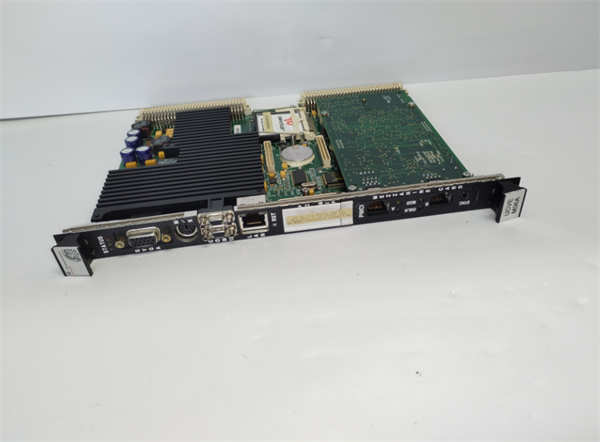

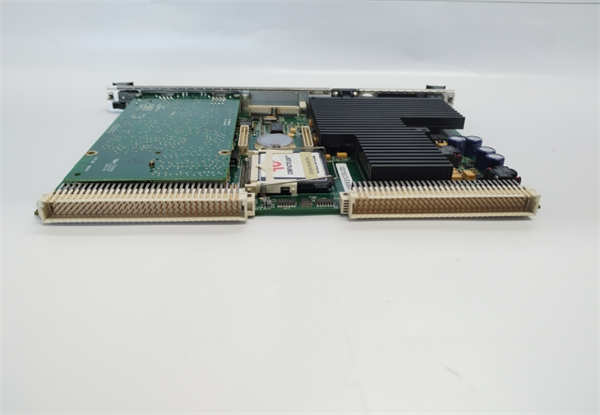

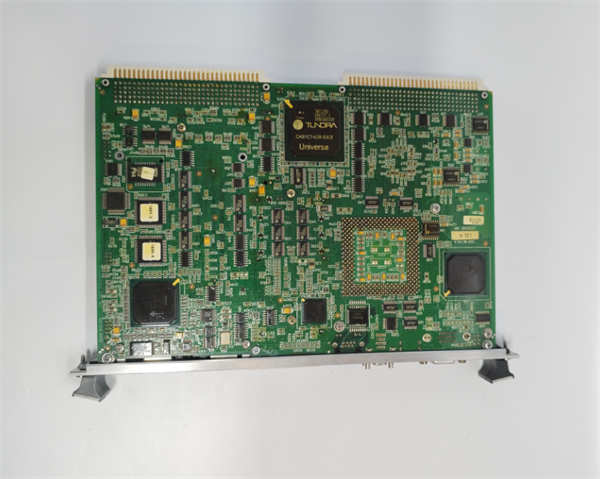

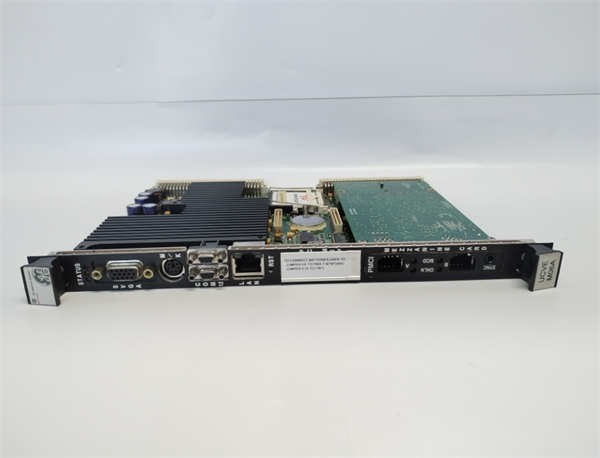

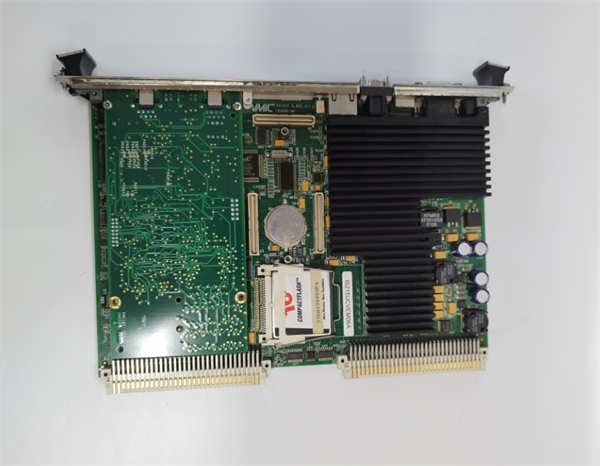

　　IS215UCVEM06A is a circuit board used in the General Electric Speedtronic Mark VI turbine series.IS215UCVEM06A is an Ethernet connection circuit board.IS215UCVEM06A uses multiple ports on the front of the device.These ports have different shapes and sizes.These ports are used to connect Ethernet cables and COM ports.IS215UCVEM06A uses various components such as capacitors,diodes,resistors,SD cards,batteries,and integrated circuits.Each component works separately to help the circuit board function as a whole.Capacitors save different amounts of energy for circuit boards.A diode directs energy in one direction rather than another.A resistor is a way for a circuit board to eliminate energy that is not used by the circuit board.SD cards are used for information and data storage.Integrated circuits are used to control circuit boards.They store all the data that tells the circuit board how to execute.IS215UCVEM06A slides into place with a male terminal on the back for connecting this circuit board to your system.There are other connection positions on the circuit board.IS215UCVEM06A has a large cooling unit that occupies half of the circuit board.

　　The IS215UCVEM06A GE controller board is a high-performance and highly reliable controller board designed specifically for the General Electric Speedtronic Mark VI turbine series.It has the following characteristics:

　　High performance:Based on the Motorola PowerPC 603e processor,with a main frequency of up to 600 MHz,it can provide powerful computing power

　　High reliability:Adopting redundant design,including CPU redundancy,power redundancy,and memory redundancy

　　Easy to maintain:supports hot swapping and can be maintained while the system is running

　　The IS215UCVEM06A GE controller board adopts a modular design,which is easy to install.It has the following structure:

　　CPU module:includes processor,memory,and cache

　　I/O module:includes various I/O interfaces

　　Product parameters:

　　Processor:Motorola PowerPC 603e

　　Main frequency:600 MHz

　　Memory:Up to 256 MB SDRAM

　　Storage:Up to 2 GB CompactFlash

　　I/O interfaces:including 2 GbE interfaces,2 USB 2.0 interfaces,and 1 RS-232 interface

　　Product specifications:

　　Dimensions:233mm x 102mm x 41mm

　　Weight:1.2kg

　　Application field:

　　The IS215UCVEM06A GE controller board can be widely used in fields such as power systems,petrochemicals,and metallurgy.

　　Here are some specific application examples:

　　In the power system,steam turbines used to control power plants

　　In the petrochemical industry,steam turbines used to control refineries and chemical plants

　　In the metallurgical industry,steam turbines used to control steel plants
