Description
Product Description
Function:
Control the operation of the turbine
Provide multiple control functions,such as speed control,torque control,overcurrent protection,etc
Usage:
Can be used for gas and steam turbines
Suitable for applications that require high-precision control and reliability
Features:
Adopting modular design
Easy to install and maintain
Featuring redundant design to improve reliability
IS215UCVEH2AE is a component of the General Electric Mark VI Speedtronic control system.This board is used as a VME control card.The VME card rack is a standard rack for Mark VI,available in either 13 slot or 21 slot racks.

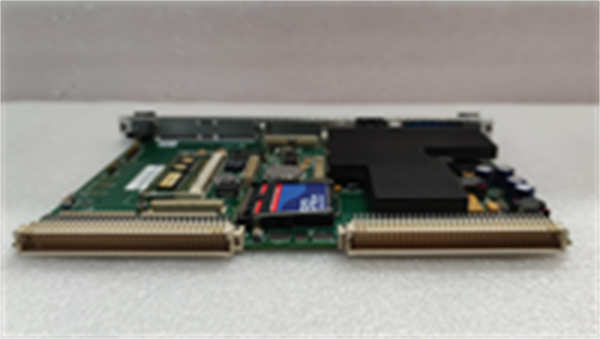

IS215UCVEH2AE is a rectangular board with a front panel.There is a fixing screw at the top and bottom of the panel to help secure the circuit board in place after installing it into the rack system.The front panel includes one Ethernet port,two COM ports,and one LAN port.It also has an opening for mezzanine cards.
The board itself includes vertical pin connectors inside the board and right angle pin connectors along the edge of the board.In addition,the board also has multiple integrated circuits,resistors,capacitors,chokes,and other components.In addition,there is a small circuit board installed at a certain angle in the center of the board,and the heat sink cover is located above half of the board.
GE IS215UCVEH2AE turbine control PCB board is a modular PCB board used to control gas and steam turbines.It adopts advanced digital control technology,which can provide high-precision control and reliability.The board has a redundant design that ensures it can continue to operate even in the event of a malfunction.
The GE IS215UCVEH2AE turbine control PCB board contains multiple functional modules,including:
Central processing unit module
IS215UCVEH2AE
Storage module
I/O modules
Power module
These modules work together to achieve precise control of the turbine.
Product parameters:
Power supply voltage:24V DC
Power consumption:10W
Size:220 x 160mm
Weight:0.5kg
Product specifications:
Supported turbine types:gas and steam turbines
Control accuracy:±0.1%
Protection functions:overcurrent,overvoltage,overheating,etc
Application field:
Electricity
IS215UCVEH2AE
Oil and natural gas
Chemical industry
Metallurgy
Ships
IS215UCVEH2AE
