IS200SAMBH1ABA GE

Description

Product Description

The IS200SAMBH1ABA is a PCB (Printed Circuit Board) assembly manufactured by GE for the Mark VI and Mark VIe systems. These systems were released by GE to improve the efficiency of their gas and steam turbines through reliable management. They are TMR (Triple Modular Redundancy) systems that provide multiple backups of critical control and protection parameters.

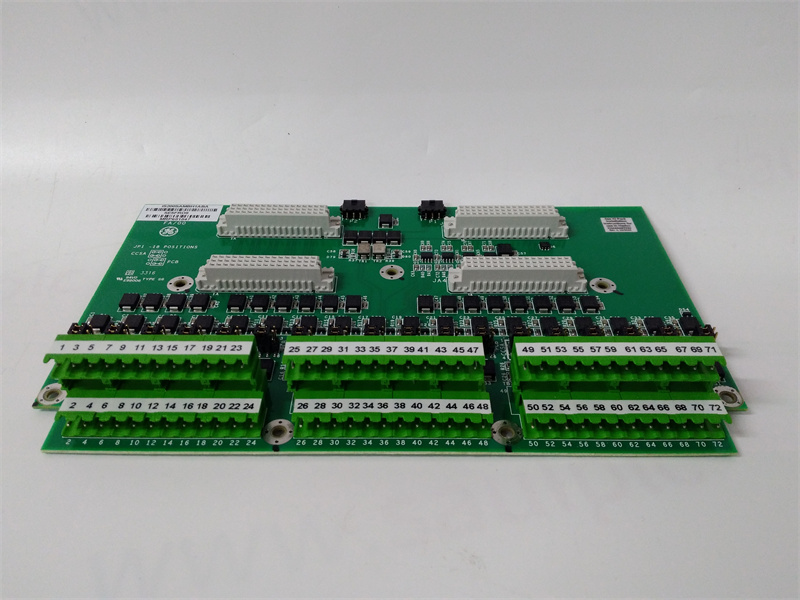

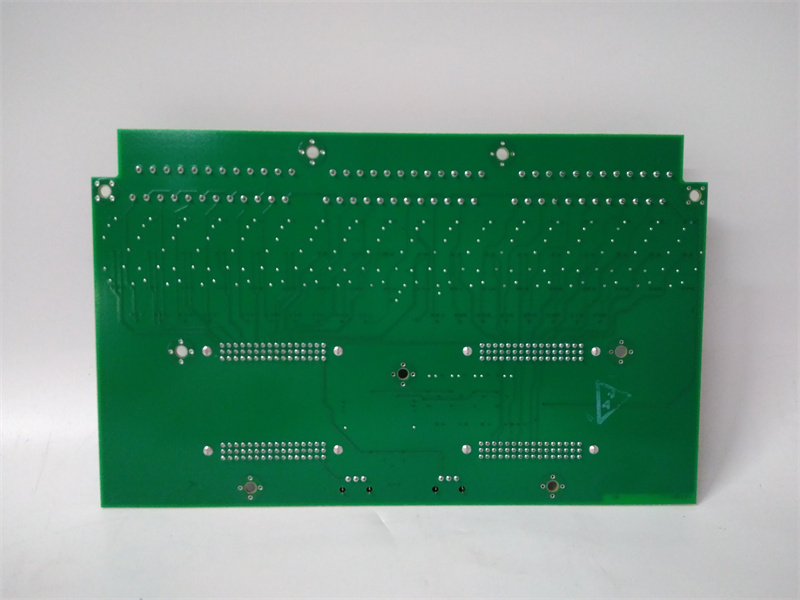

The IS200SAMBH1ABA is an acoustic monitoring terminal board. The dual terminal board adds 18 inputs to the acoustic monitoring system through 36 terminals located on the terminal strip that are used to connect two-wire inputs. The board also features a terminal strip with 36 terminal connections for adding two-wire buffered outputs for a total of 18 outputs. These outputs typically monitor voltage signals.The IS200SAMBH1ABA is equipped with passive electromagnetic interference (EMI) filters to protect against high frequency noise from external sources.

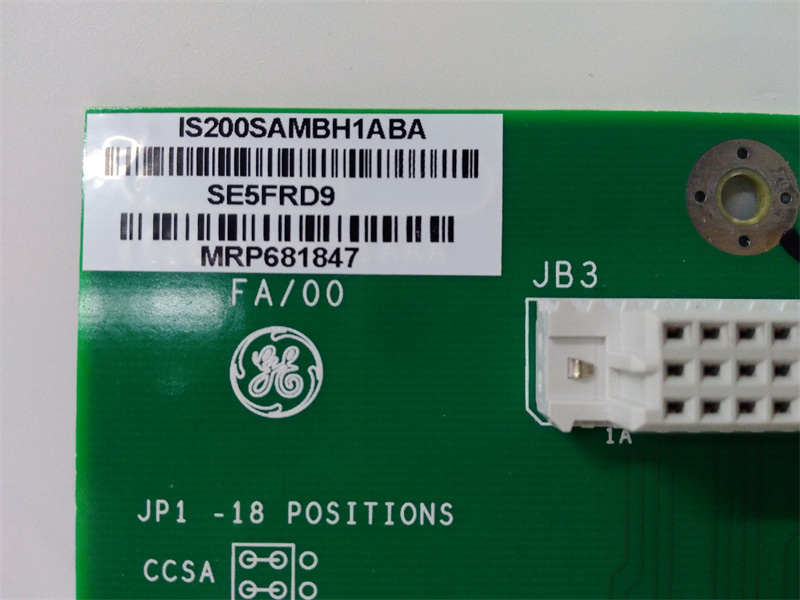

The IS200SAMBH1ABA is designed with an additional metal frame that surrounds all four edges of the PCB. The frame has multiple flanges, including top hat flanges placed along each long edge of the board, which has been drilled with mounting slots or holes. The face of the board is labeled with various codes, including FA/00.The board assembly and the previously mentioned frame are connected by brackets and screw mounts. The board measures 9.1 in. x 5.625 in. Cooling is accomplished by air convection.
