Description

Invensys Triconex DO3401 is a programmable control system module.Here is a detailed introduction about it:

1.Product Overview

The Invensys Triconex DO3401 module is part of the Triconex safety system of Invensys,developed by Schneider Electric.This module is commonly used for industrial process safety monitoring and control,especially in areas with high safety requirements,such as oil,gas,chemical,nuclear energy,etc.

2.Functional Features

Digital Output:

The DO3401 is a digital output module that provides four high-speed digital outputs that can be used to control various types of devices such as relays,solenoids,and motors.

The output voltage range is 5~30V DC,the output current is 1A per channel,the output frequency can reach up to 10kHz,and the response time is only 100μs.

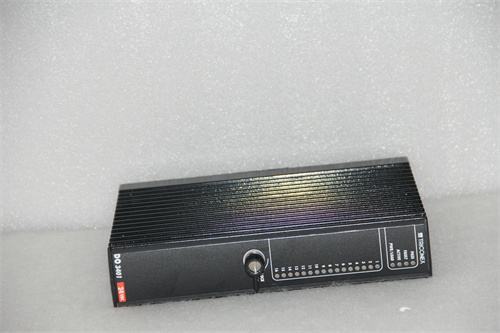

Invensys Triconex DO3401

Programmability:

The Triconex system is programmable,allowing users to configure and program the DO3401 module according to the needs of specific applications.

This flexibility enables the DO3401 module to adapt to different industrial process control needs.

Communication interface:

Triconex systems usually have multiple communication interfaces,such as Ethernet,Modbus,Profibus,etc.,to exchange data and monitor with other devices and systems.

These interfaces enable the DO3401 module to be easily integrated into existing industrial automation systems.

Reliability and safety:

Since Triconex systems are usually used in high-risk industrial environments,the DO3401 module also focuses on reliability and safety.

It meets relevant safety standards and specifications to ensure stable operation in harsh environments.

Monitoring and fault diagnosis:

Triconex systems usually have monitoring and fault diagnosis functions to monitor the status of the module and generate alarms when a fault occurs.

This helps users to find and solve problems in a timely manner and improve the reliability and stability of the system.

Invensys Triconex DO3401

3.Application fields

Invensys Triconex DO3401 modules are widely used in the following fields:

Industrial process control:used to monitor and control various industrial processes,such as fire and gas detection,pressure control,temperature control,liquid level monitoring,etc.

Safety system:As part of the safety system,it is used to ensure the safety of industrial processes and prevent accidents.

Automation system:integrated into the automation system to achieve automated control and monitoring of equipment.

4.Product parameters

The following are some of the main parameters of the Invensys Triconex DO3401 module:

Input voltage:24V DC

Output voltage:5~30V DC

Output current:1A per channel

Number of outputs:4

Output type:high-speed digital

Output frequency:up to 10kHz

Response time:100μs

Operating temperature:-40℃~70℃

Enclosure protection level:IP20
