Description

ICS Triplex T8403C digital input module is an industrial control system product designed and manufactured by ICS Triplex(now part of Honeywell Process Solutions)or Rockwell Allen-Bradley/Rockwell Automation.The following is a detailed introduction to ICS Triplex T8403C:

1.Product Overview

ICS Triplex T8403C digital input module is usually used to monitor and receive digital signals,and plays an important role in various applications in the field of industrial automation and control.It may be a member of the AADvance controller family,designed to be used as part of a complete AADvance system together with power supply,control computer,field connection and external network connection.

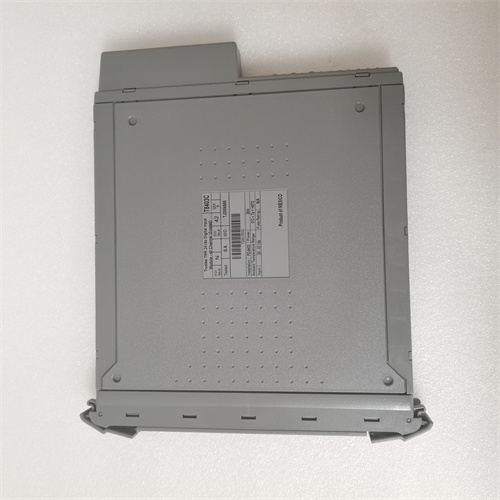

ICS TRIPLEX T8403C

2.Technical Features

Digital Input Channels:T8403C digital input modules are usually equipped with multiple digital input channels,which can be used to connect to various digital sensors or switching devices.Some specific models of modules even have up to 40 triple modular redundant(TMR)input channels to improve system reliability and fault tolerance.

High Reliability:The module is designed with high reliability to ensure stability and reliability in critical applications.This is due to its advanced circuit design and high-quality material selection.

Redundancy:To improve the availability of the system,some T8403C modules have redundant input channels,allowing dual input.In this way,when one input fails,it can switch to the backup input to ensure the continuous operation of the system.

Anti-interference and anti-interference capabilities:The T8403C module has excellent anti-interference and anti-interference capabilities,which can maintain the stability of the signal in an electromagnetic interference environment and ensure the accurate transmission of data.

Communication interface:The module is usually equipped with a communication interface such as Ethernet,Profibus,Modbus,etc.,to exchange data with other control systems or monitoring systems.This helps to achieve system integration and remote monitoring.

Self-test and diagnosis:The T8403C module has comprehensive automatic diagnosis and self-test functions,which can help users monitor the status and performance of the module and detect faults.This reduces maintenance costs and improves system availability.

Real-time monitoring:The module supports real-time data monitoring,allowing operators to quickly identify and respond to problems.This helps to ensure stable operation of the system and timely troubleshooting.

Data logging and reporting:Some modules also have data logging functions,which can record historical data of input signals for subsequent analysis and reporting.This helps users better understand the operating status of the system and optimize production processes.

3.Application fields

Process control system:T8403C digital input module can be used to monitor and control digital signals in the production process,such as flow,pressure,temperature,etc.

Power system:In the power system,the module can be used to monitor the status,current,voltage and other digital signals of power equipment to ensure the stability and security of the power grid.

Chemical industry:In the chemical industry,T8403C digital input module can be used to monitor key parameters in the chemical process to ensure the safety and efficiency of the production process.

Manufacturing:In the manufacturing industry,the module can be used to monitor the equipment status,output and other digital signals on the production line for real-time control and optimization.

Oil and gas field:In the oil and gas industry,T8403C digital input module can be used to monitor and control various parameters in the oil and gas production process to ensure the normal operation of the equipment.

Mechanical engineering:In the field of mechanical engineering,digital input modules can be used to monitor the operating status and performance of mechanical equipment.

Aerospace:In the field of aerospace,digital input modules can be used to monitor various digital signals on aircraft or ground equipment.

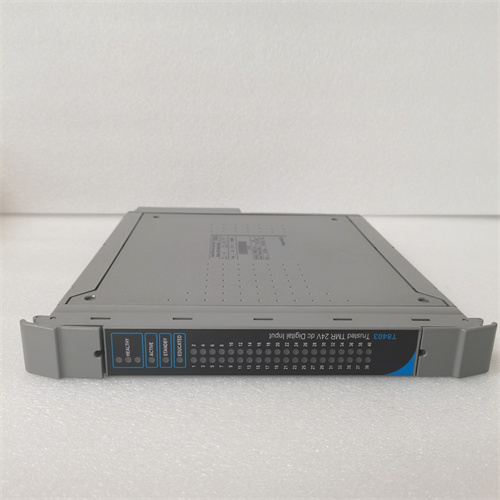

ICS TRIPLEX T8403C

4.Other features

Triple voltage measurement:The T8403C module uses a sigma-delta input circuit to measure the input voltage and provides comprehensive fault detection and fault tolerance through triple voltage measurement.

Line monitoring:The module has a line monitoring function that can detect open and short field wiring faults.This helps to find and solve problems in time and avoid potential safety hazards.

Event sequence reporting:The module provides on-board sequence of events(SOE)reporting with a resolution of 1 millisecond.When the state changes,an SOE entry is triggered,which records the timestamp and status information of key events.

Digital filtering:Configurable 50/60Hz digital filtering helps to eliminate field-induced noise and improve signal accuracy and reliability.

Hot replacement function:The module can be configured with dedicated matching(adjacent)slots or intelligent slots for online hot replacement of modules(one spare slot for multiple modules),which improves the flexibility and maintainability of the system.
