Product Description:

The IC698PSA100 is a high-performance processor module manufactured by General Electric (GE) for industrial automation systems. This module serves as a central component in GE’s PACSystem RX7i control systems, responsible for executing control logic, processing input/output signals, and communicating with other devices.

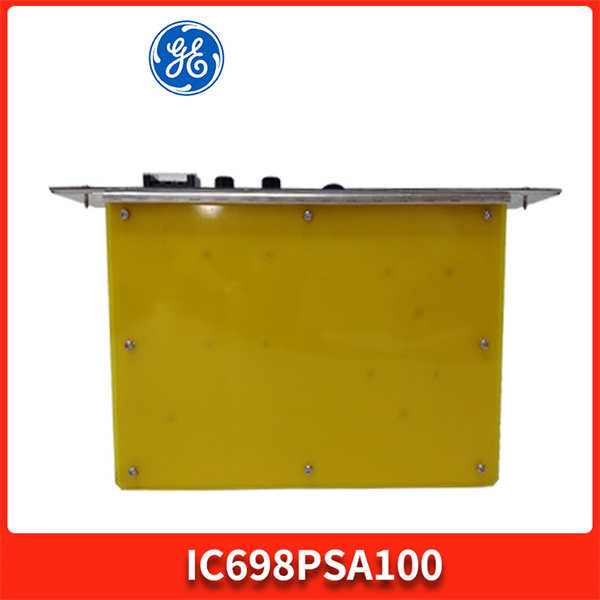

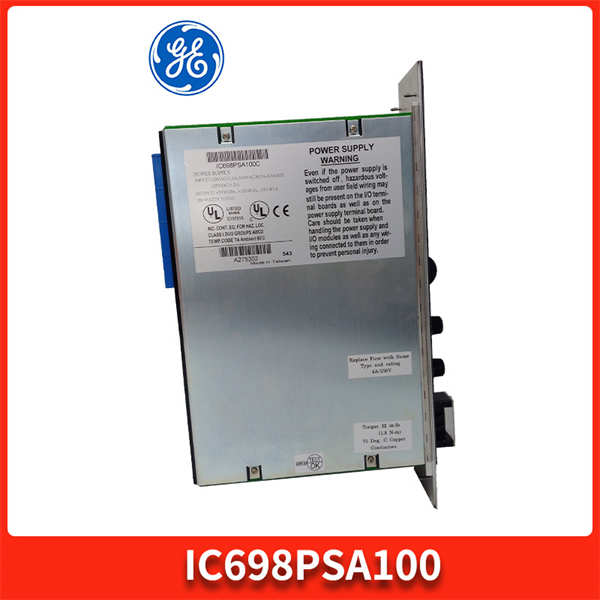

IC698PSA100 GE Processor Module

Product Parameters:

Processor Type: 32-bit RISC processor

Power Output: Multiple power output channels for various voltage and current requirements

Power Protection: Features power protection against overcurrent, overvoltage, and short circuit

**Modular Design:**Allows for easy addition or modification of modules based on application needs

Communication Interface: Provides a communication interface for data transmission and monitoring

Programmable: Some models may offer programmable capabilities for customized power output settings

Product Specifications:

Input Voltage Range: 12-48VDC

Output Voltage Range: 5VDC

Output Current: Maximum of 10A

Efficiency: Greater than 90%

Dimensions: 170mm x 105mm x 32mm

Weight: Approximately 120g

Operating Temperature: -20°C to +50°C

Storage Temperature: -40°C to +70°C

Environmental Humidity: 5% to 95% relative humidity (non-condensing)

Series:

Part of the PACSystem RX7i family of control systems, the IC698PSA100 is specifically designed for use in this series of industrial automation controllers.

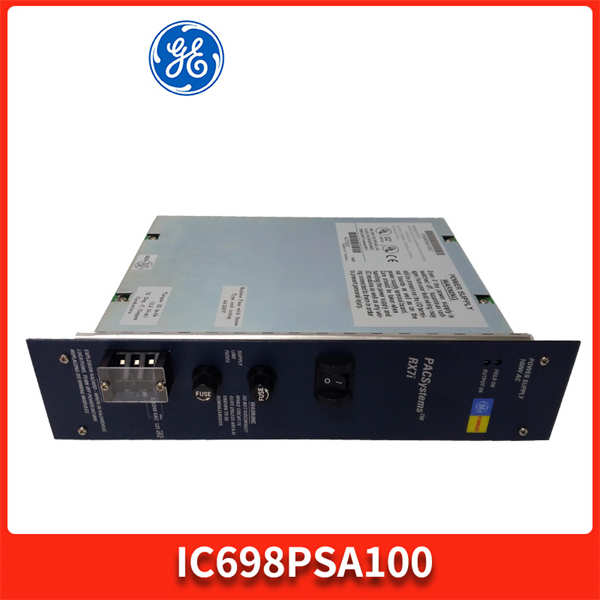

IC698PSA100 GE Processor Module

Features:

Robust Performance: Equipped with a 32-bit RISC processor for efficient and reliable operation

Power Protection: Ensures system stability and safety by preventing power-related issues

Modular Design: Facilitates easy customization and expansion based on specific application requirements

**Communication Capability:**Enables seamless communication with other modules and systems for real-time data exchange and monitoring

**Programmable Options:**Offers flexibility for configuring power output parameters to meet unique application needs

Functions:

Processing: Executes control logic and processes input/output signals to manage industrial processes

Power Distribution: Provides multiple power output channels to supply power to various components and devices

Communication: Communicates with other modules and systems to transmit power status and monitoring information

Protection: Guards against power-related issues such as overcurrent, overvoltage, and short circuits to ensure system reliability

Applications and Uses:

The IC698PSA100 processor module finds widespread applications in various industries where reliable and efficient control is crucial. It is commonly used in:

Manufacturing: Automating production processes and enhancing overall efficiency.

Energy and Utilities: Monitoring and controlling critical infrastructure for energy production and distribution.

Transportation: Ensuring smooth and reliable operation of transportation systems.

Building Automation: Managing and optimizing the operation of building systems such as heating, cooling, and lighting.
